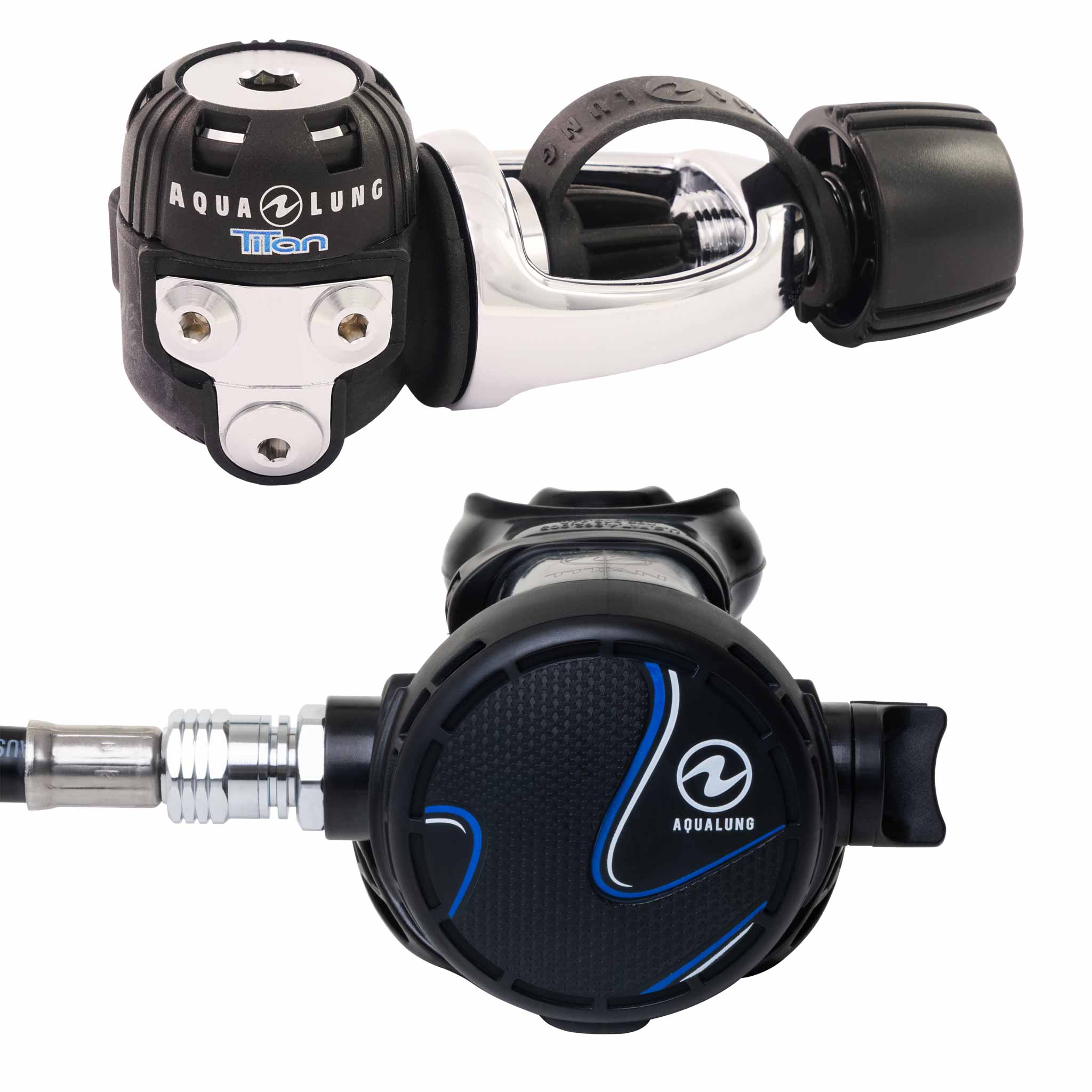

Aqualung Titan Regulator Yoke
Breathe easy—the third-generation Aqualung Titan Regulator Yoke brings an updated design to this perennial favourite while keeping its excellent value. It’s a new look with the unchanged lightweight, rugged durability, and easy-breathing functionality of its predecessors. And it still offers superior performance and hassle-free maintenance.
Titan Regulator Yoke Features
First Stage
- Balanced Diaphragm The balanced diaphragm mechanism allows for ease of breathing and consistent performance while protecting internal moving parts from the environment.
- Lightweight Construction The Titan’s unique forged body uses less brass, making it more compact and lighter weight than other regulators.
- Polyurethane Purge Cover Rugged, durable polyurethane purge cover is abrasion-resistant, tear-resistant, minimises inhalation effort, allows easy water purging, and helps protect against shock.
- HP/MP Ports and “T” Shape 2 HP ports (7/16”) and 4 MP ports (3/8”), perfectly oriented in a “T” shape for streamlined hose positioning, reduced exhalation effort, and sending bubbles out of your field of view.
- Water Retention Open-yoke screw helps prevent water retention.

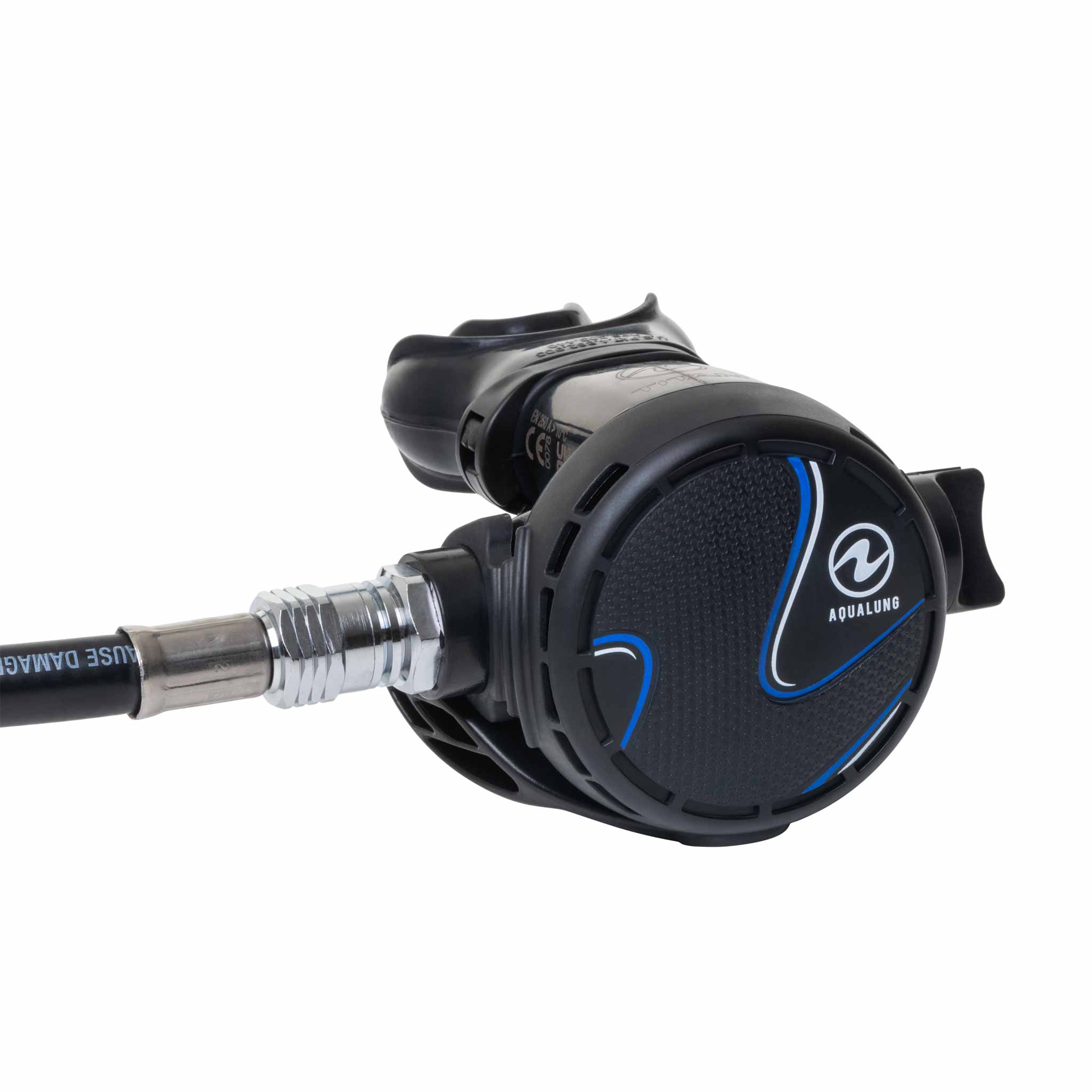

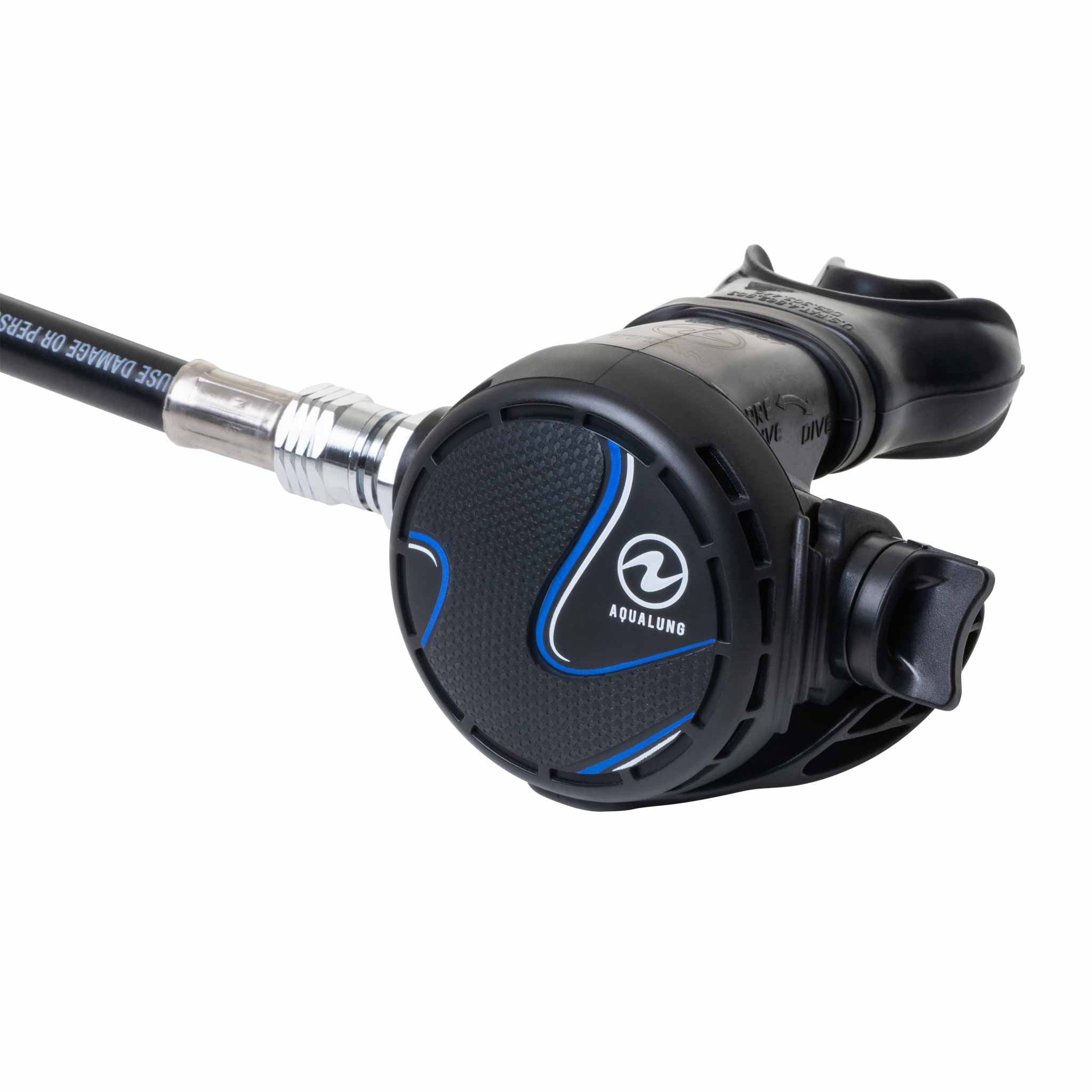

Second Stage
- ComfoBite Comfo-Bite mouthpiece is soft yet sturdy and reduces jaw fatigue with its unique palate bridge.
- Reusable Clip Perform quick and easy mouthpiece changes using the removable, reusable clip.
- Clipped Deflector Simple maintenance is made possible by a reduced number of components and easy access to the exhaust valve through a clipped deflector. The deflector also splits up bubbles to decrease noise and protect the valve from expiration.
- Venturi Knob Easy control: the in-line ergonomic Venturi knob lets you make precise adjustments, even while wearing gloves.
- Polyurethane Purge Cover Rugged, durable polyurethane purge cover is abrasion-resistant, tear-resistant, minimizes inhalation effort, allows easy water purging, and helps protect against shock.
- Material Strength Made of durable polycarbonate
Specs 1st stage
1st Stage Technology | Diaphragm, balanced |
Mechanism | T-shape |
Wet/Dry chamber | Wet chamber |
Maximal Working Pressure | 300 bar in DIN version 232 bar in yoke version |
ACD System | No |
Number of HP ports | 2 (7/16″ UNF) |
Number of MP ports | 4 (3/8″ UNF) |
Medium Pressure | 9.5 bar ± 0.5 bar (137 ±7 psi) |
Flow Rate (Surface, Hose) | 1450 l/min (51.2 cubic feet/min) HP = 200 bar |
Body | Marine brass, bright chrome plating |
Shield protector | Polyurethane |
Removable HP crown, spring | Stainless steel |
Conical Filter | Sintered bronze |
O-Rings | EPDM |
2nd stage
2nd Stage Technology | Unbalanced |
Mechanism | Demand valve, downstream poppet |
Cracking Effort | 2.5 to 4 mbar (36 to 58 mpsi) |
Venturi adjustment knob | Yes |
Box bottom, deflector, Venturi vane | ABS |
Purge Cover | Polyurethane |
Mouthpiece, Exhaust Valve, Diaphragm | Silicone |
Poppet | Polyurethane |
Adjustable Crown | Stainless steel |
Overall work of breathing (WOB) scores | Avg. 1.0 joules/litre |
