Apeks XTX50 & XTX40 Octo Regulator Set Yoke

Apeks XTX50 & XTX40 Octo Regulator Set Yoke

The XTX50 and DST combination gives you adjustable breathing controls and a rotating first-stage turret. It is a flexible platform for arranging hoses around your diving equipment, with the selected configuration determining the exact first-stage ports and supplied components.

Features and benefits

• Over-balanced first stage. The diaphragm mechanism increases intermediate pressure slightly faster than surrounding pressure as you descend, helping compensate for denser breathing gas at depth.
• Dry environmental chamber. The sealed chamber keeps water and sediment away from the first-stage spring mechanism and supports resistance to freezing in cold water.
• Rotating hose turret. The low-pressure turret turns to follow hose direction, making it easier to arrange hoses without tight bends around the first stage.
• Balanced second stage. Pneumatic balancing reduces the force needed to open the demand valve, helping the second stage respond smoothly as you inhale.
• Inhalation-effort adjustment. The adjustment knob lets you change the effort needed to start a breath, so you can tune the response within the regulator’s operating range.
• Venturi control. The lever changes airflow assistance inside the second stage. Use the pre-dive setting for surface handling and the dive setting as directed in the manual.
• Progressive purge. The purge responds to how firmly you press it, giving you control over the flow used to clear the second stage.
• Reversible hose routing. An authorised technician can configure the second stage for left- or right-hand hose entry to suit your equipment layout.
• Interchangeable exhaust. The exhaust options let you choose a compact layout or wider bubble diversion to suit your diving and field of view.
• Comfo-Bite mouthpiece. The silicone palate bridge supports the second stage with less need to clench your jaw, which can make longer dives more comfortable.
• Heat exchange. The heat exchanger transfers warmth from the surrounding water to the valve area, helping counter the cooling that occurs as gas expands.
• Flexible breathing hose. The braided hose bends readily around your equipment, helping reduce tension at the second-stage connection.

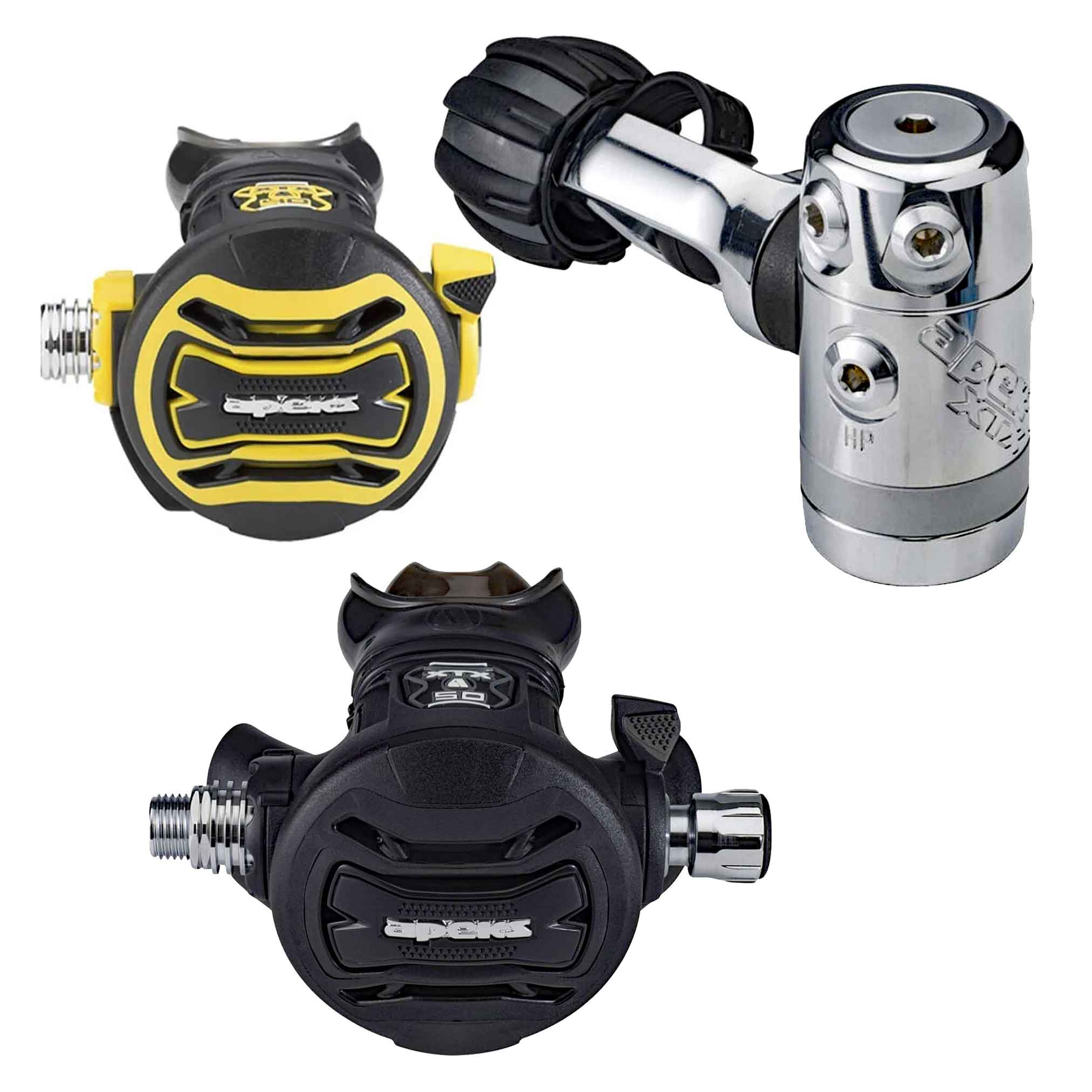

• XTX40 alternate air source. The balanced XTX40 octopus has Venturi control and a visible yellow hose and cover, keeping the alternate distinct from the adjustable primary.

Setup and compatibility

Connection: Yoke. Choose the fitting that matches your cylinder valve and its pressure rating. A fifth-port upgrade is optional and sold separately unless expressly included in your selected configuration.

The XTX40 octopus has Venturi control; the separate inhalation-effort adjustment belongs to the primary XTX200 or XTX50 second stage in the set.

Care, rinsing and storage

After each dive, connect the assembled regulator to a scuba cylinder and open the valve to pressurise the system. Keep it pressurised while fully submerging the first stage, second stages and connected hoses in fresh water. This allows thorough cleaning of the exposed components and hoses while helping prevent water entering the internal air passages, where it can cause corrosion and damage. Keep the cylinder secure throughout cleaning.

For routine cleaning, Dive Gear Australia recommends Cressi Neoclean Wetsuit Wash Neoprene Cleaner 500 mL or Revivex Wetsuit Shampoo 10 oz to help remove salt, chlorine and everyday residue. Dilute according to the cleaner’s label, then rinse thoroughly with fresh water.

Keep the regulator pressurised throughout washing and rinsing. Lift it out of the water and dry the first stage and cylinder connection before closing the cylinder valve, releasing the pressure and disconnecting. Fit the clean, dry dust cap, then allow the regulator to dry in the shade. Store it with the hoses loosely curved, without sharp bends or tension.

Before each dive, inspect the mouthpiece, hoses and connections for wear or damage. Have your regulator serviced by an authorised Apeks technician at the interval specified in its manual, or sooner if it leaks, is damaged or its breathing performance changes. Leave internal adjustments and repairs to a qualified technician.
