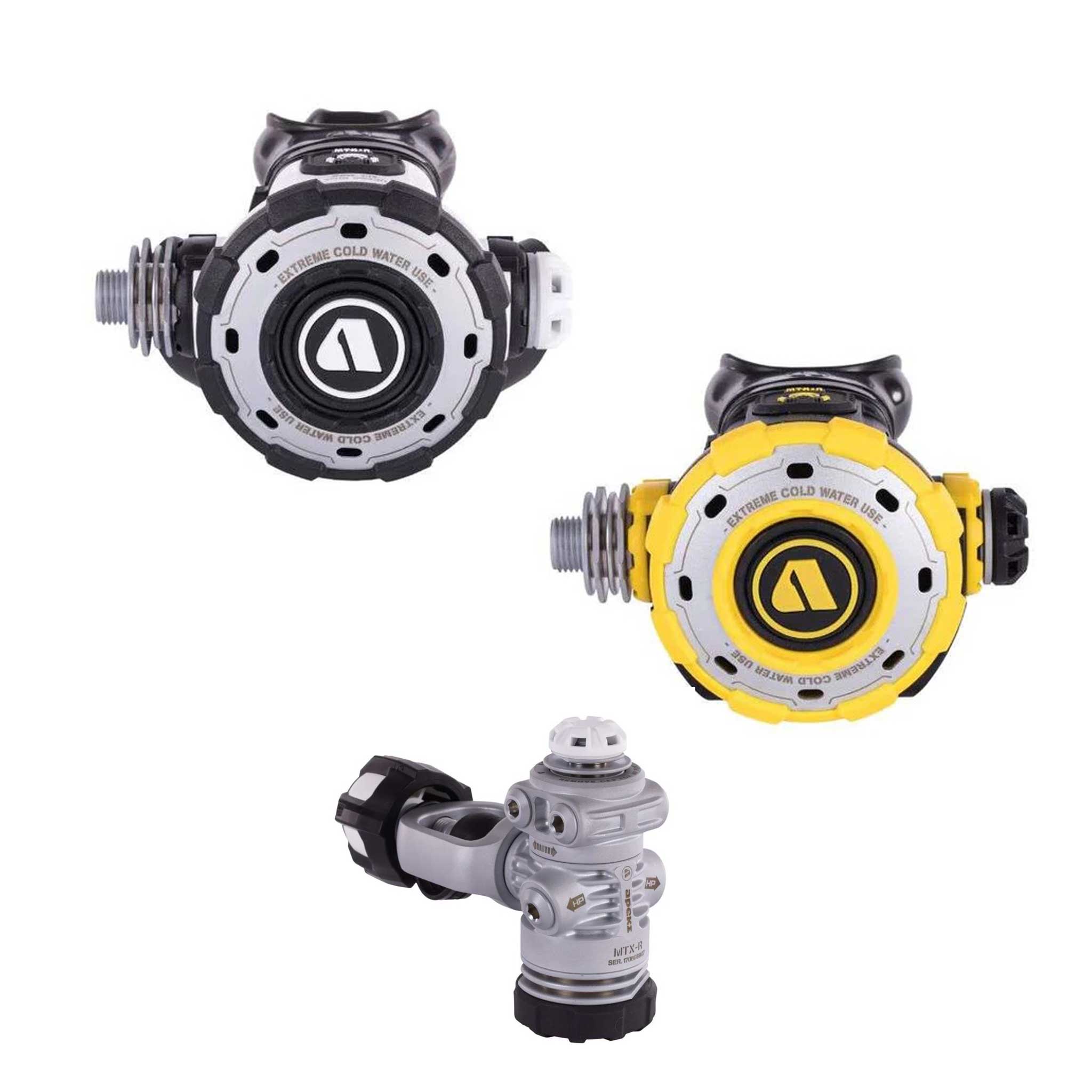

Apeks MTX-R Stage 3 Regulator Set Yoke
Original price was: $1,800.00.$1,699.00Current price is: $1,699.00. inc. GST
The Apeks MTX-R Stage 3 Yoke set pairs an environmentally sealed, overbalanced diaphragm first stage with MTX-R primary and octopus second stages. Five medium-pressure and two high-pressure ports support hose routing. The Yoke connection is rated to 232 bar.
SKU: AP0067
1 in stock
Apeks MTX-R Stage 3 Regulator Set Yoke
The MTX-R Stage 3 set combines a cold-water first stage, primary second stage and alternate-air-source octopus. Its sealed first stage has a rotating turret and heat-exchange features.
- Overbalanced diaphragm first stage.
- Five medium-pressure ports, including four on a rotating turret.
- Two angled high-pressure ports.
- Yoke connection rated to 232 bar.
- Pneumatically balanced second stages with large purge controls.
- No user-adjustable breathing knob or Venturi lever on the MTX-R second stage.
- Comfo-bite mouthpiece, protective bumpers and heat exchanger.
- Flexible braided hoses.
- Diver Changeable Exhaust system; DGA listing includes both exhaust-tee sets.
Follow Apeks guidance for gas compatibility, operating limits and servicing.
Technical Specs
| Brand | Apeks Dive Gear |
|---|---|
| Main model / configuration | Apeks MTX-R Stage 3 Regulator Set Yoke |
| Product type | Regulator |
| Regulator type | Regulator Set |
| Regulator connection | Yoke |
| First-stage design | Over-balanced diaphragm |
| Second-stage design | Pneumatically balanced |
| High-pressure ports | 2 |
| Low / medium-pressure ports | 5 |
| Environmental sealing | Yes, dry chamber |
| Cold-water suitability | Yes |
Additional specifications
- The MTX-R regulator, based on the MTX, was developed in response to the United States Navy Experimental Dive Unit’s extreme cold water test. Its innovative design allows it to perform in almost freezing water at depths exceeding 60 m, a feat unmatched by many other consumer-market regulators.
- Yoke – 1.339 kg (2.95 lbs)
- Yoke - 232 bar (3365 psi)
- 9-10 bar (131-145 psi)
First Stage
- Breakthrough, innovative over-moulded first-stage endcap and environmental diaphragm helps to prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first Stage from impact damage.
- Ribbed diaphragm clamp for improved heat exchange in cold water conditions.
- Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
- 5 x medium pressure ports, 4 mounted on a rotating turret for improved hose orientation
- 2 x angled high-pressure ports for optimal hose routing and fitting of transmitters.
- Double swivel hose for greater freedom of movement and comfort.
- DIN, Yoke and M26 Thread available, 300 bar, 232 bar and M26 300 bar (O2) respectively.
- Tested for Octopus use - EN250A to 60 m cold water.
- Nitrox/Oxygen compatible – Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection.
2nd Stage
- High performance, pneumatically balanced, lever operated poppet valve.
- Ergonomic and simple to use venturi lever.
- Large purge button.
- Flexible nylon braided hose, which has better cold water performance than traditional rubber hose.
- Nitrox/Oxygen compatible – Up to 40% O² .
