Atomic Aquatics Titanium TFX Regulator Din
$4,199.95 inc. GST
The Atomic Aquatics TFX DIN regulator uses a front-mounted exhaust valve and inhalation diaphragm in a distinctive second-stage design. Titanium components, a Comfort Swivel hose connection and adjustable Venturi control form a premium regulator assembly for a compatible DIN cylinder valve.
Available to order — estimated dispatch in 3 days.

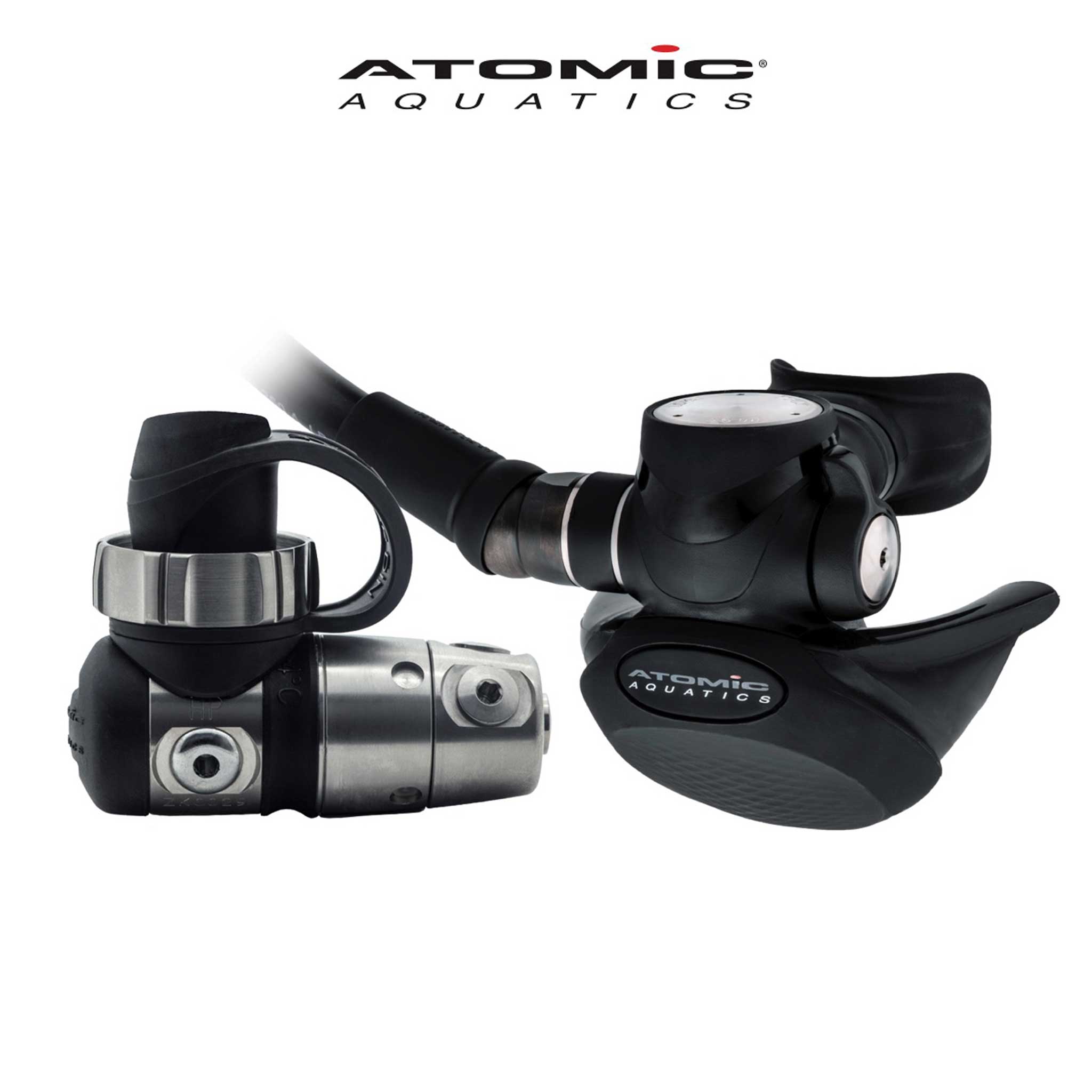

Atomic Aquatics TFX DIN Regulator

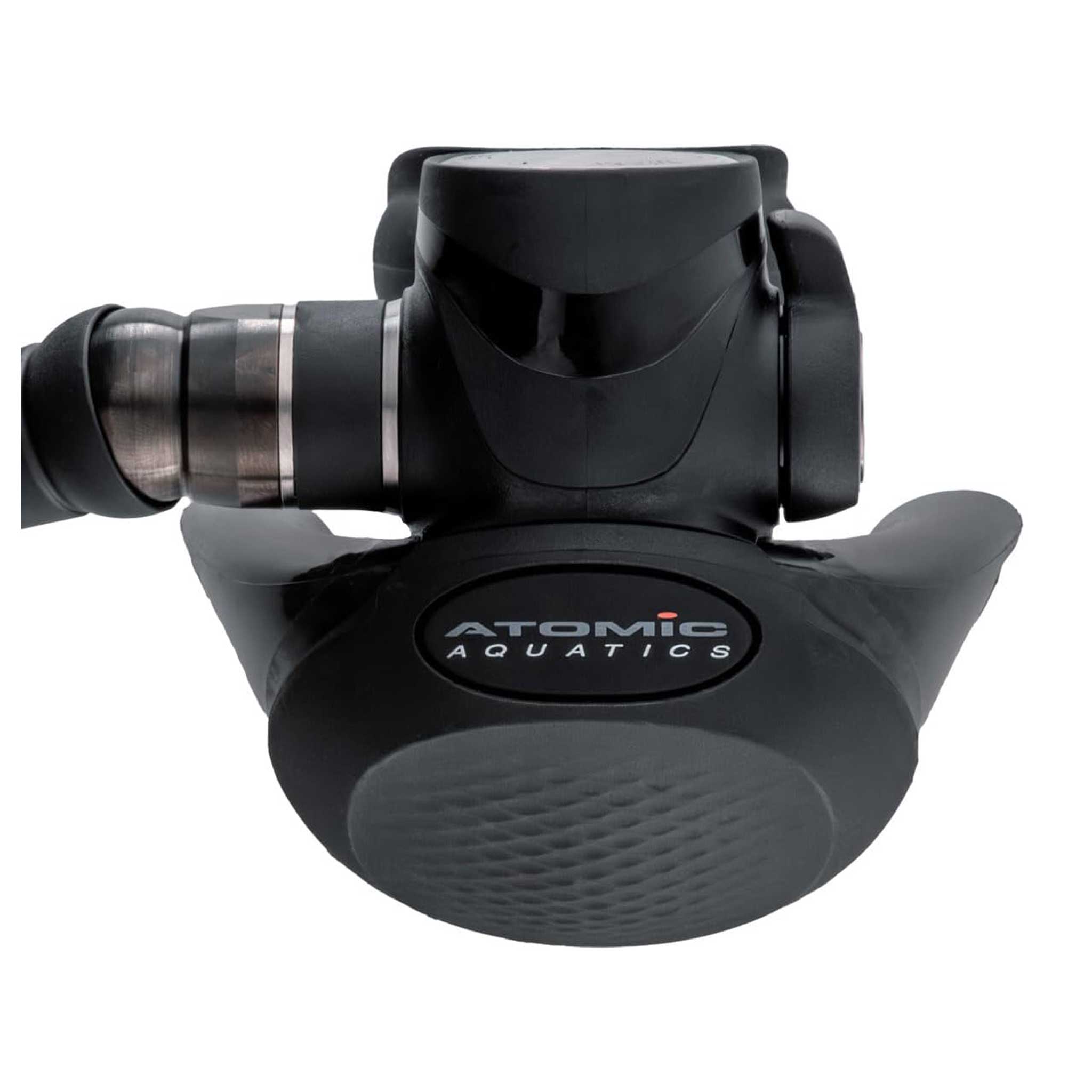

The TFX places the exhaust valve and inhalation diaphragm together at the front of the second stage. Its shaped exhaust deflectors direct bubbles towards the rear, while titanium components and the Comfort Swivel hose connection complete the assembly.
- DIN first-stage connection.
- Titanium first- and second-stage metal components.
- Balanced piston first stage.
- Five low-pressure ports on the swivel cap and two fixed high-pressure ports.
- Adjustable Venturi nozzle control.
- Seat Saving Dynamic Orifice.
- Padded travel bag included.
Follow the current Atomic inspection and service guidance. The regulator carries a limited lifetime warranty, subject to the manufacturer’s terms.
Technical Specs
| Brand | Atomic Aquatics |
|---|---|
| Main model / configuration | Atomic Aquatics TFX |
| Product type | Regulator |
| Regulator type | Primary Regulator |
| Regulator connection | DIN |
| First-stage design | Balanced Jet Seat high-flow piston |
| Second-stage design | Front-mounted coaxial diaphragm and exhaust |
| High-pressure ports | 2 |
| Low / medium-pressure ports | 5 on swivel cap |
| Environmental sealing | Yes, factory sealed |
| Cold-water suitability | Freeze-protected first stage |
| Breathing adjustment | Adjustable Venturi lever |
| Mouthpiece | Dual-silicone comfort fit |
| Nitrox / oxygen compatibility | Up to 40% oxygen |
| First-stage materials | Titanium |
| Hose | Titanium Comfort Swivel |
| Included equipment | Padded travel bag |
TFX 4X YOKE FIRST STAGE FEATURES
| Ports | 2 HP fixed / 5 LP on swivel cap. |
|---|
- Precision-machined from solid Titanium alloy bar.
- Atomic Aquatics exclusive balanced Jet Seat high-flow piston.
- Freeze-protected and factory-sealed to prevent outside contamination from silt and sand.
- Nitrox ready – approved for non-dedicated EAN use with mixtures up to 40%.
Additional specifications
- In extreme diving positions, like looking upwards, the TFX exhaust valve and diaphragm are positioned at exactly at the same level with no pressure differential. Any water will collect at the exhaust valve and be easily exhaled with each breath. The water column effect is minimal in the TFX, compared to the large water column effect in the conventional regulator, which will become more difficult to inhale since the diaphragm is higher than the mouthpiece. The TFX is much less sensitive to different attitudes encountered during diving.
- All-Titanium First and Second Stage metal components
- Venturi Nozzle gear-driven tuning switch
- Comfort Swivel Hose now with less friction and smoother movement
- Exceeds requirements for European EN250 (1.5 joules/liter @ 50 m) and USN group A(0.14 kg.m/liter @ 200 feet at 62.5 RMV)
- System Weights (with Yoke) 838 g (1.80 lb) (0.816 kg)
- System Weights (with DIN) 778 g (1.71 lb) (0.775 kg)
- Second stage only with hose 385 g (0.85 lb) (0.385 kg)
TFX SECOND STAGE FEATURES

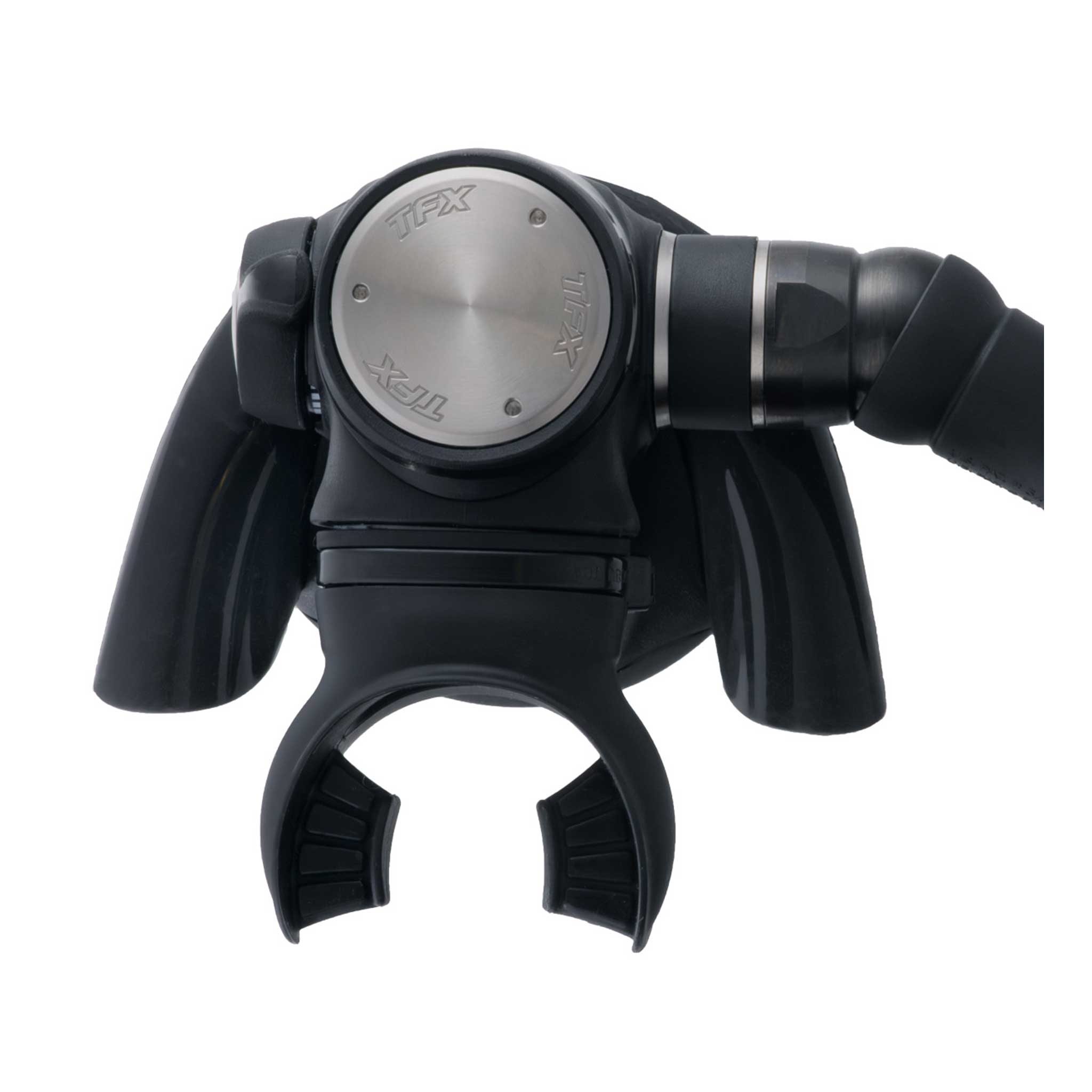

- Fresh take on front exhaust design with exhaust valve and inhalation diaphragm both mounted in the front center of the regulator.
- Atomic Titanium Seat Saving Dynamic Orifice automatically retracts away from the seat when not under air pressure to extend service life, maintain crisp like-new performance and prevent damage during storage.
- Adjustable venturi nozzle gear-driven tuning with soft-touch lever.
- Coaxial diaphragm and exhaust valve for 360º breathing effect.
- Hose features the Atomic exclusive patented all-Titanium Comfort Swivel now with less friction and smoother movement.
- Extended silicone exhaust tee is uniquely designed with a sweeping flexible front purge cover and soft rubber exhaust deflectors that route the exhaust away from and behind the divers field of view.
- Dual silicone comfort fit mouthpiece with tear-resistant bite tabs – both comfortable and durable.
Sources: Atomic regional catalogue; Current product information.
