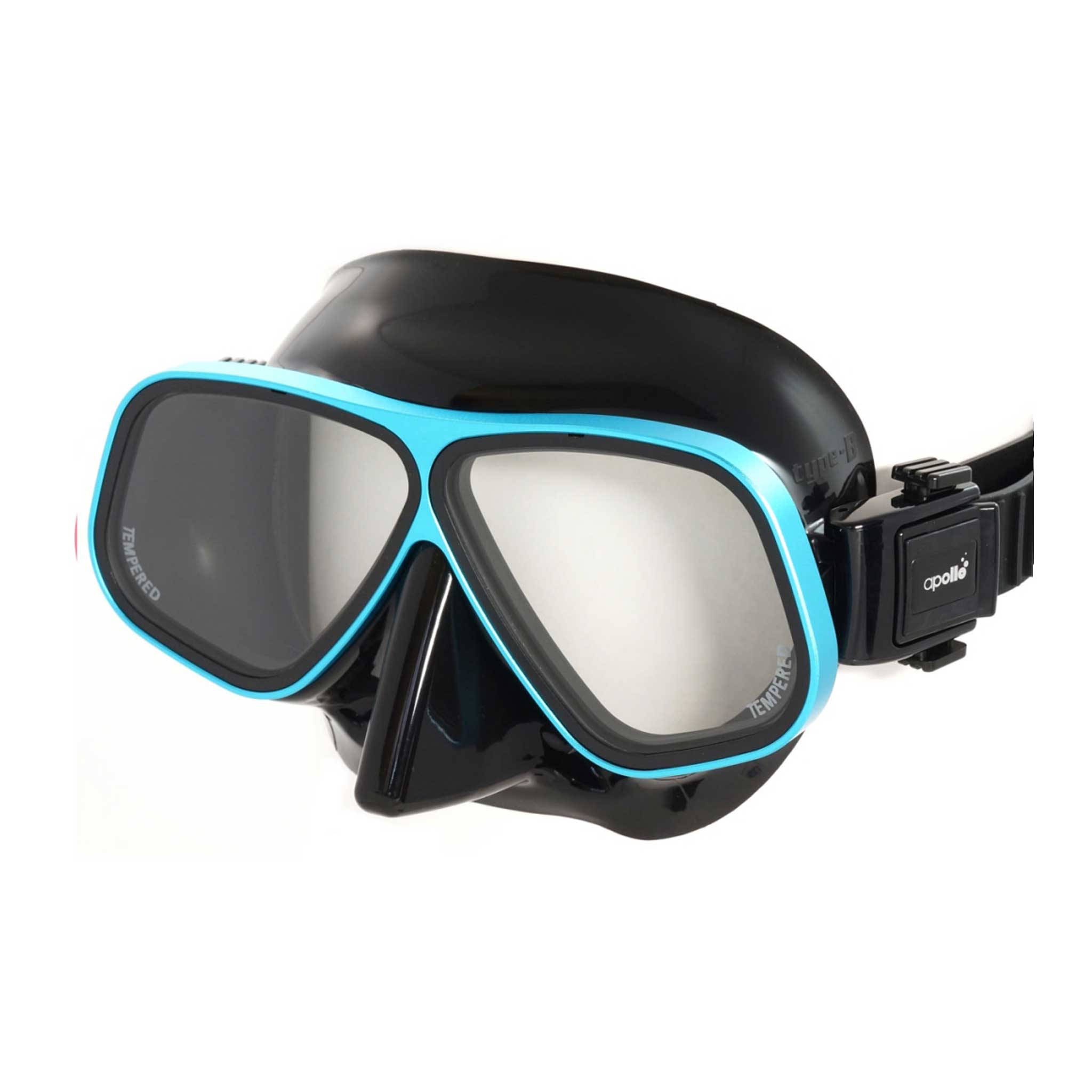

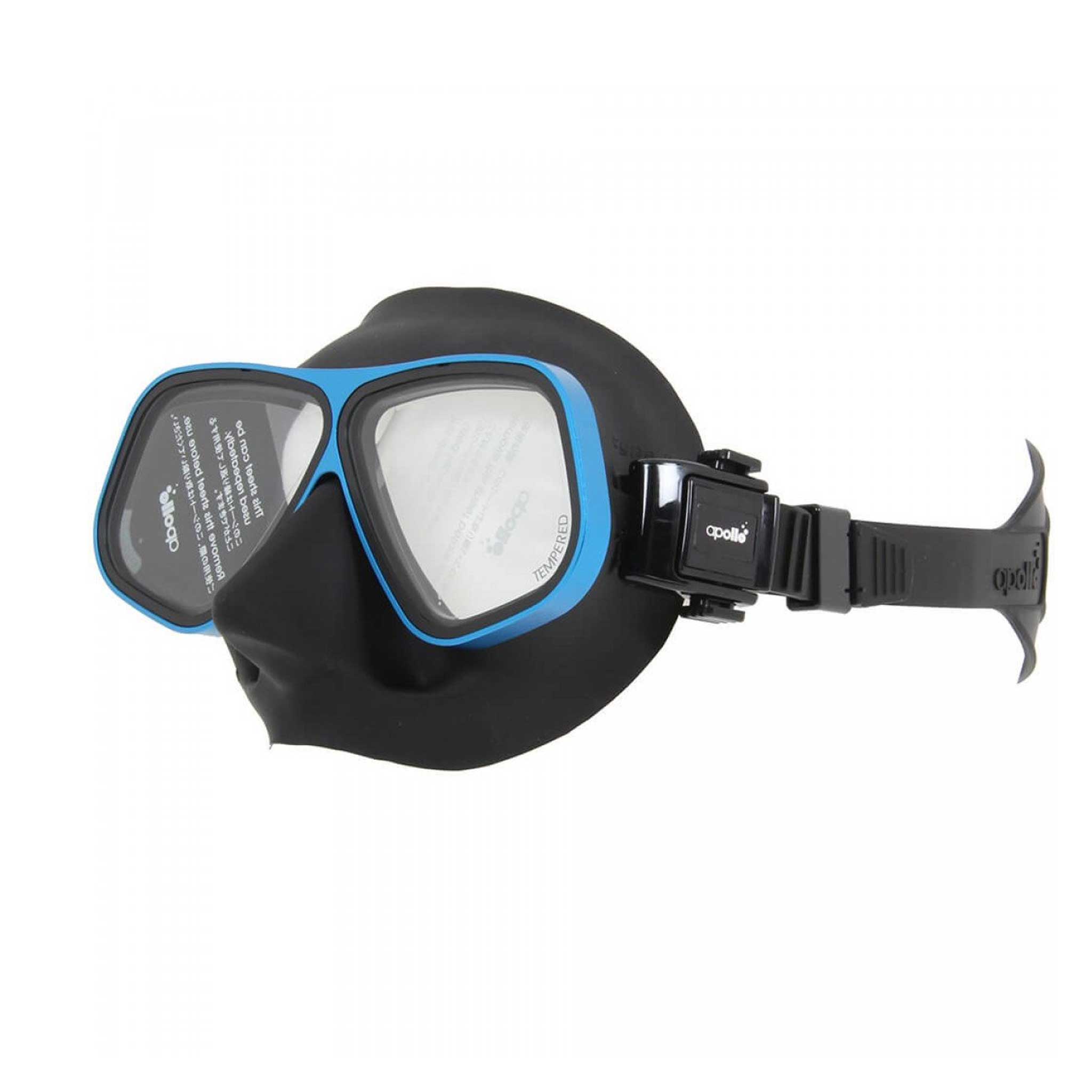

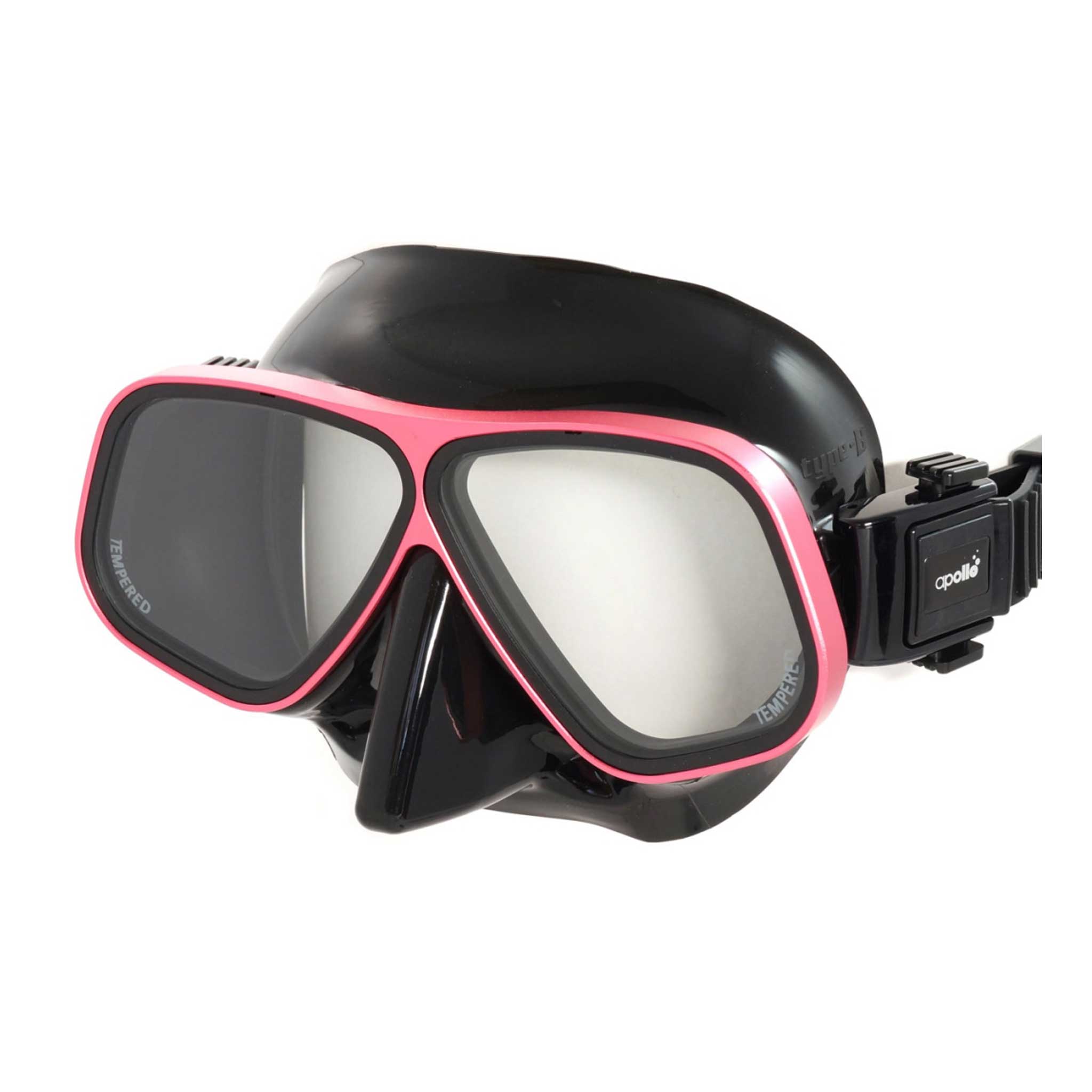

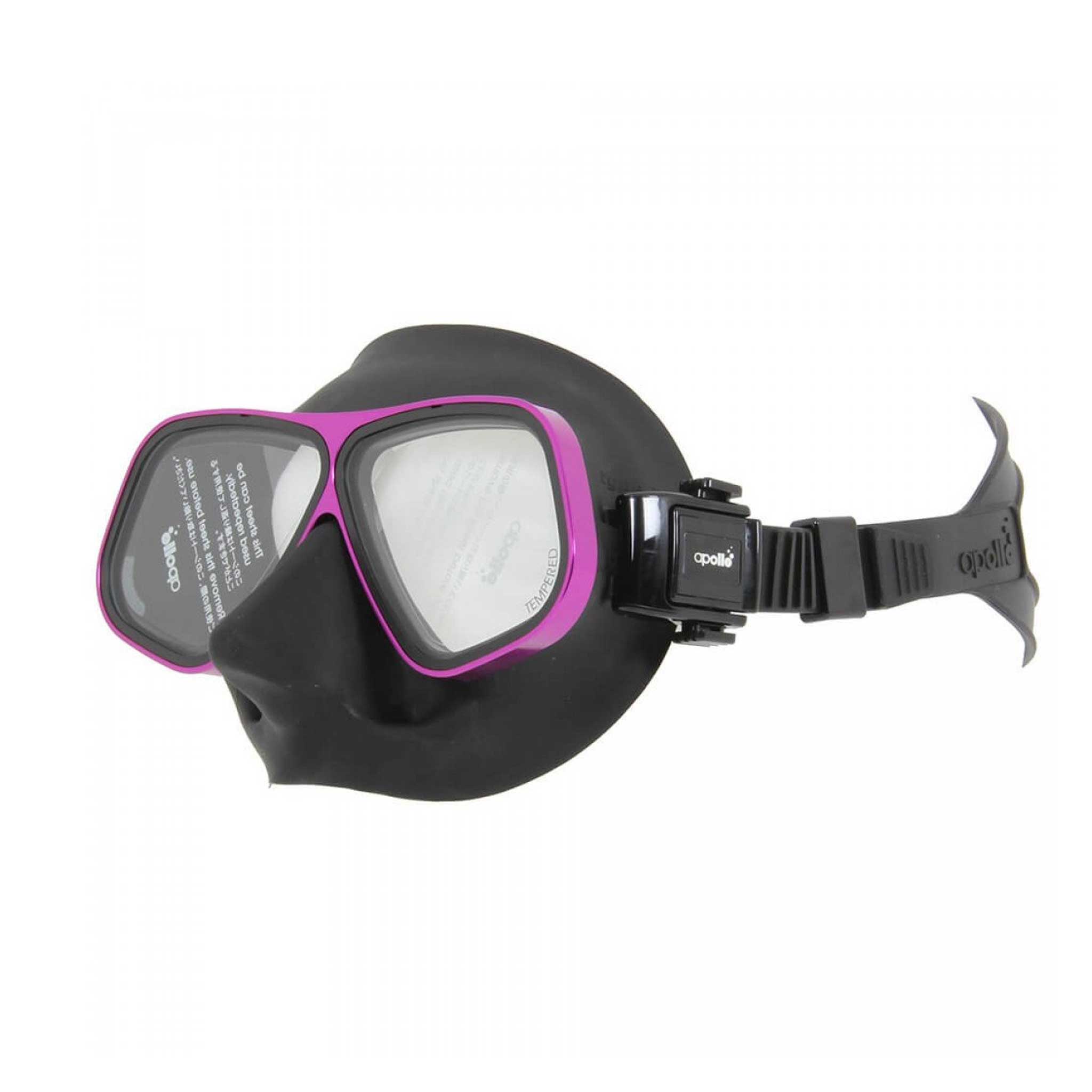

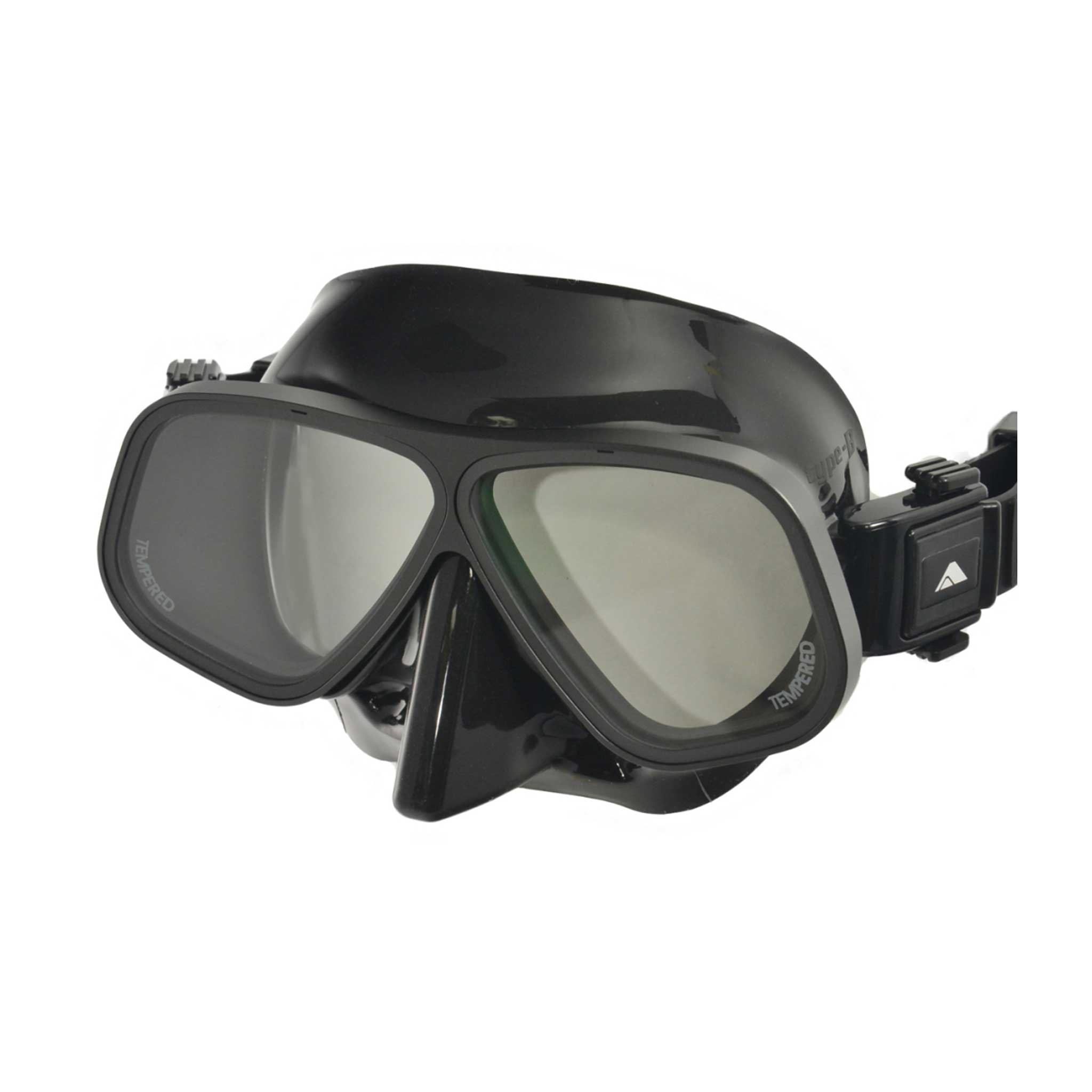

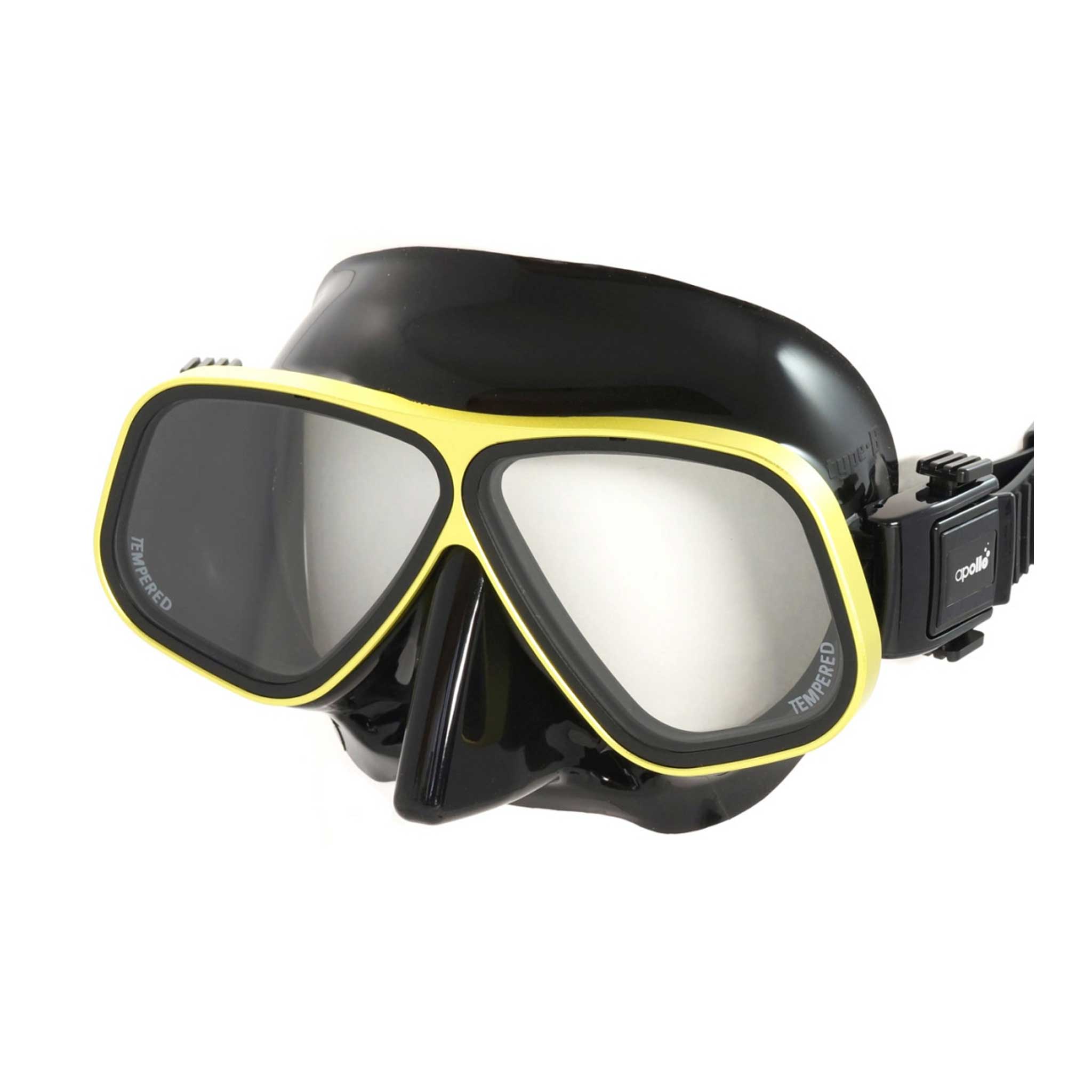

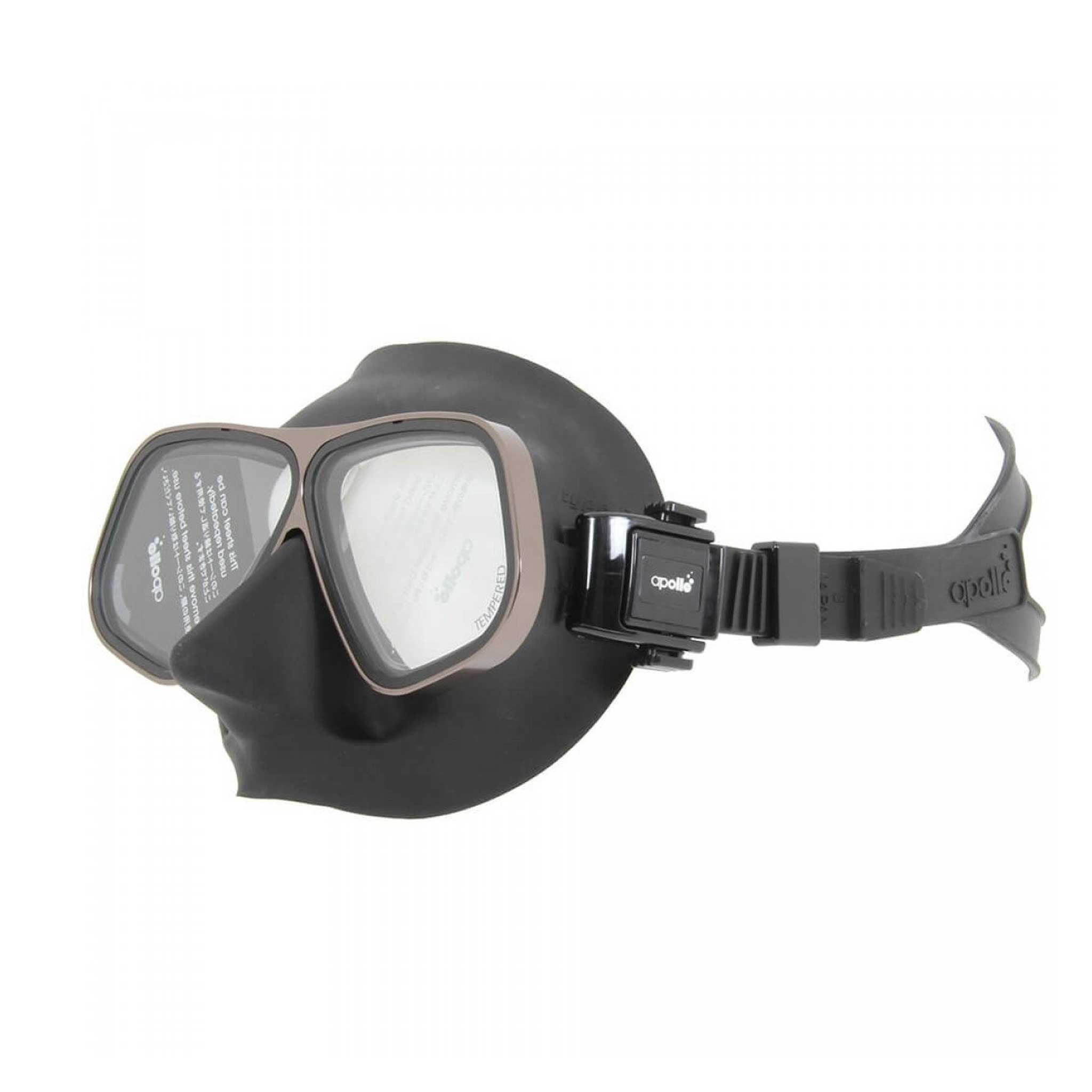

Apollo Bio Metal Prescription Mask
Apollo Bio Metal Mask (Matte) C Class
The Apollo Bio Metal Prescription Mask C Class is a revolutionary mask. Metal Masks set standards for a fantastic fit and outstanding performance. The luxurious aluminium alloy machined frame delivers accuracy and quality without compromise.
A wide range of adaptability by providing the flange lineup ranging from type-A to type-D. The Matte finish type-D flange provides an excellent fit and antifouling property.
Wide field of view characteristics of unique frame machined aluminium alloy.
110 cc matte finish skirt
Apollo Bio Metal Mask Features
- Strong, slim-line aluminium frame for an EXTREMELY low volume of (110 cc)
- Matte-finished black silicone on both the inside and outside
- Reduced width across nose centres eyes in lenses, thereby eliminating distortion common in most masks
- Uniquely shaped silicon skirt brings unparalleled comfort, fit and sealing
- Prescription lenses available, -1 to -9 in 0.5 increments; see the following pages on Prescription Lenses
- Supplied in a clear plastic box
Mask Specs
Type-C (inner volume 110cc)
The type-C design is a universal shape that suits everyone the most, and it has been adopted since the introduction of the bio-metal mask. Its merits are soft fit and ease of ear clearing.Â
It will ensure an effective wide field of view to the travelling direction in the water as the lens surface plane is set slightly upward.
Type-C is the first launch of the flange in the bio-metal series, and it has been the best-selling design.
The outside surface has a matted finish for easy cleaning, preventing the adhesion of dirt and Virile appearance.Â
Double-lip Structure
A lip is the periphery of the diving mask flange in contact with the face. The double-lip Structure has one additional lip toward the inside of the flange in addition to the conventional lip that is structured toward the outside of the flange. The double-lip Structure doubles the total area in contact with the face, and consequently, it reduces the contact pressure to the face and improves the waterproof.
Advanced double-lip Structure
The “advanced double-lip” structure has a larger arc cross-sectional shape periphery which makes the pressure on the outer periphery of the face more gradually and progressively weakened toward the outside so that it hardly leaves marks on the face.
Stabilizer Structure
The flange of the stabilizer structure wraps the frame around the lower and side surfaces of the frame. This Structure has overcome the weakness of a conventionally shaped flange that tends to bend from the root of the connection portion with the frame. As a result of this overcome, the stabilizer structure has achieved very stable mounting while the inner volume remains at a minimum.
Twin-curve Structure
The curved circumferential surface effectively uses different curves at the inner and outer surfaces so that the periphery gradually changes the thickness of the cross-section. This Structure optimally controls the amount of the bend and contact pressure of the circumferential surface when mounting.
Matt Finish (type-D, type-C Black)
It is matt finished black on both inside and outside. It is the best-suited diving mask for those who dive where any reflection of light is inherently prohibited or undesirable. It gives dignity to the professional tool and protection against the adhesion of the dart.
Wide vertical view
The frame is tilted downward by a further five degrees compared with type A and B, and the lens frame is set as close as possible to the forehead. This Structure has gained a downward field of view and consequently achieves a wider vertical field of view.
Superfit
Compared to other models, it is designed to fit more diverse face types by selecting material and optimizing the size and shape of the area that fits the face. Wearing it feels very soft and is easier to get used to.
Machined Aluminum Alloy Frame.
The luxurious aluminium alloy machined frame delivers accuracy and quality without compromise.
The high-quality frame material with a high degree of accuracy is produced by a luxurious machining process, and the surface thereof is subjected to a plasma coating (part of bio-metal mask pro) or hard alumite processing (aluminium frame) in order to much improve luxury and durability.Â
Wide 3D vision with Metal frame –  in the world (Design Patented)
The metal frame attains the width of the centre portion of frames as only 7mm. It feels like a single-lens mask.
Polished by craftsmen in Japan
Metal frame, especially “Migaki (polished) by Craftsman’s hand.
Only underwater mask Crafted in Japan.
Stick to the Lens

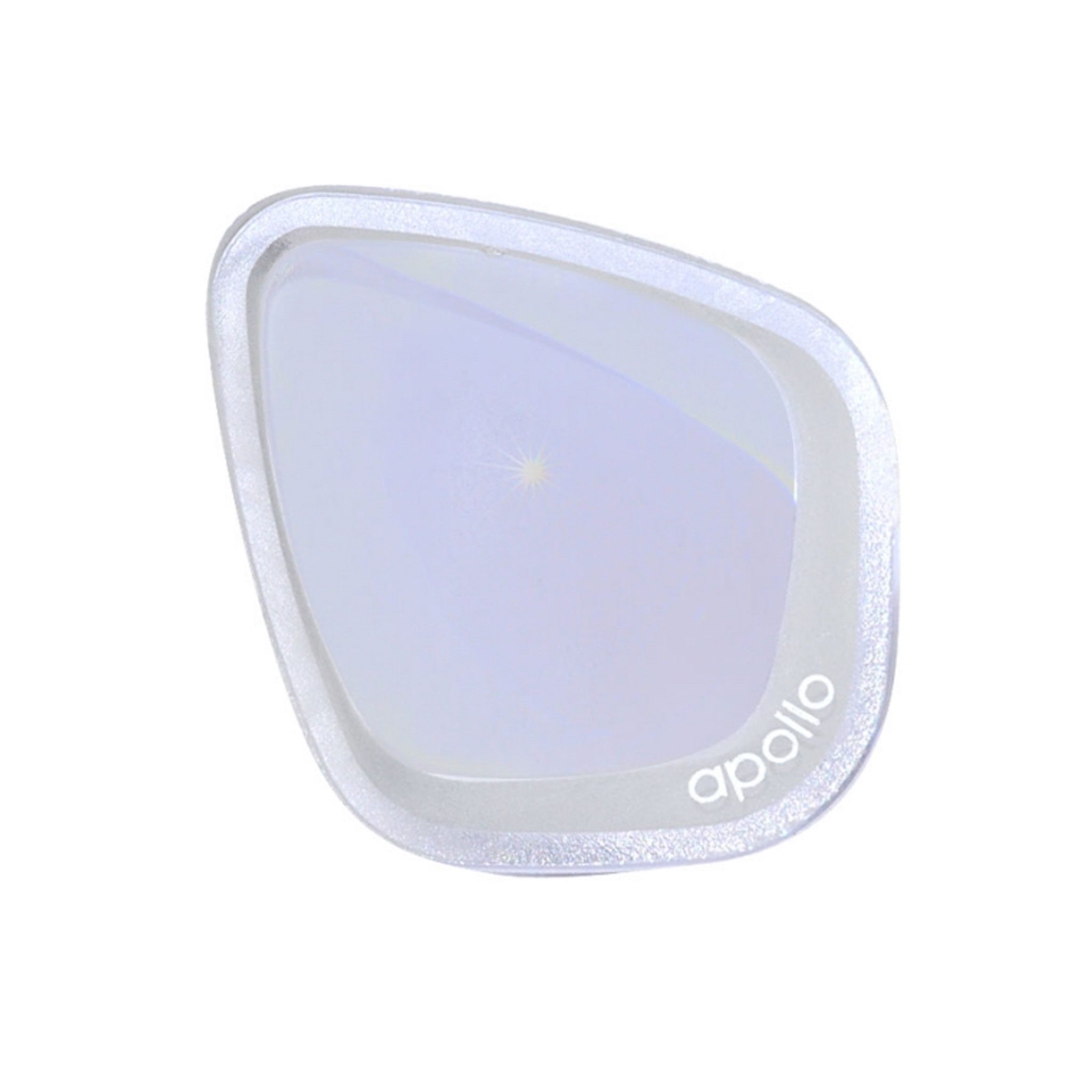

Another feature of the bio-metal mask is a wide lineup of lenses.
1-Standard lens made of tempered glass.
2-Polarized lens – laminated – high-quality polarizing plate with excellent polarizing property.
3-Highly durable bio-AR lens suppresses surface reflections to a minimum by the multilayer coating.
4-Wide range of the off-the-shelf vision corrective lenses made of optical glass.
It is possible to choose a lens that suits you from this lens lineup.
Silicon Anti-adhesive Sheet
The silicon component volatilized from silicone rubber will stubbornly adhere to the inner surface of the mask lens. It is a thing quite difficult to remove. To avoid this, we put the silicon anti-adhesion sheet on the inner surface of the mask lens at the time of manufacturing.
Because of the low coefficient of viscosity with this protection sheet, the sheet can be easily removed and also repeatedly reused. After the mask is used, wash and dry the mask, then put back the protection sheet on the inner surface of the mask lens. It minimizes the occurrence of fogging due to the volatilized silicon even after long-term storage.
