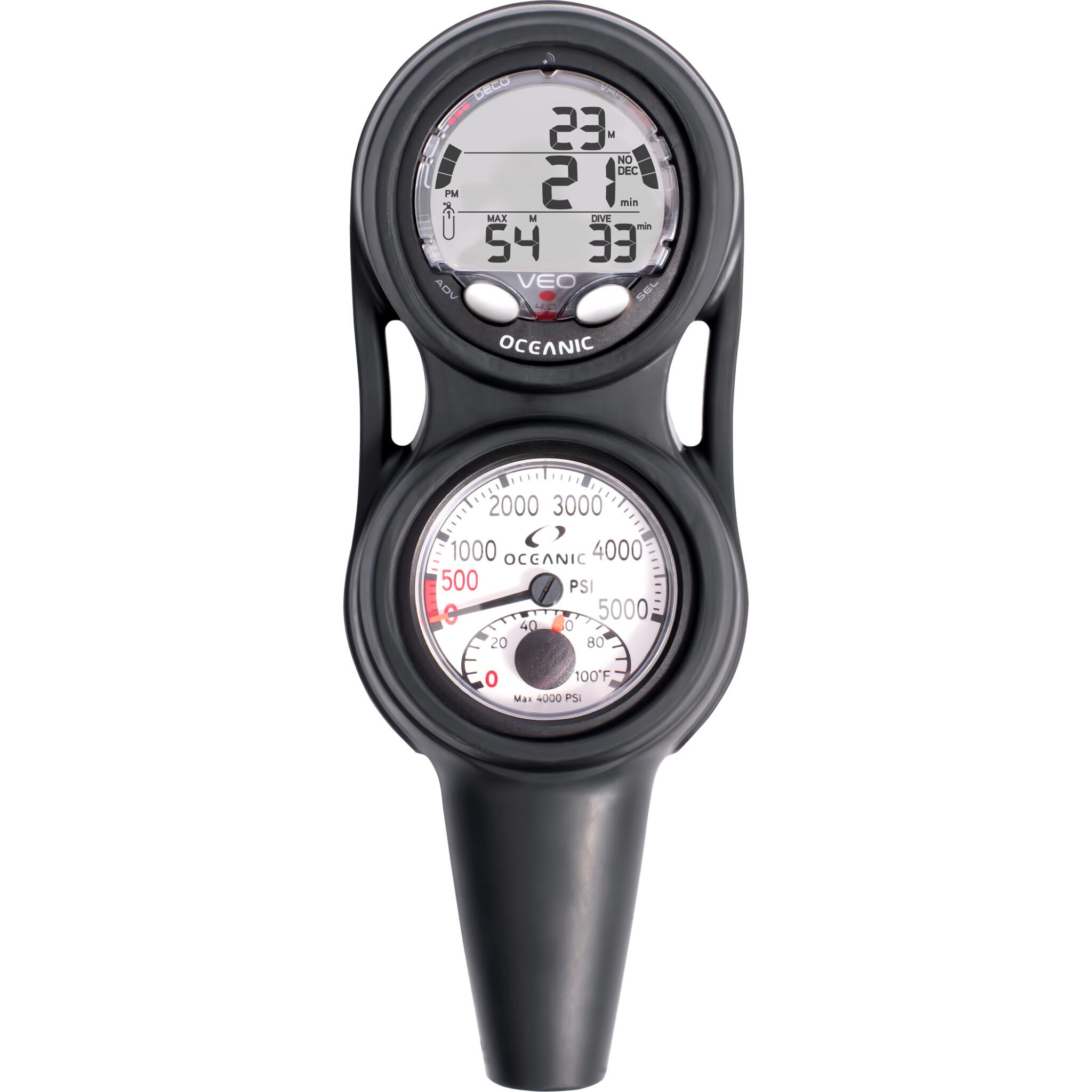

Oceanic VEO 4.0 Navcon Dive Computer
CONNECT WITH THE DIVERLOG+ APP
FEATURES & FUNCTIONS | VEO 4.0 |
---|---|
Modes of Operation | 4 – Norm (Air / Nitrox) Gauge, and Free Dive |
# of Gases | 3 |
Push Buttons | 2 |
User Interface | Click forward, Fast Scroll |
Mounting Options | “Hockey Puck” Module, Wrist, 2 and 3 Gauge Consoles |
Activation | Water or Push Button |
Algorithm Basis | Dual Algorithm™ Your choice between Pelagic DSAT (Spencer/Powell data basis) or Pelagic Z+ (Buhlmann ZHL-16C data basis) |
Personal Conservative Factor Adjustment | Each Level provides No Decompression Limits for the next dive +3000 ft altitude |
Altitude Algorithm Basis | NOAA |
O2 Limit Basis | NOAA |
Tissue Compartments | 12 (5 to 480 minutes) |
Automatic Altitude Adjustment | 2,000 – 14,000 ft / 610 – 4200 m |
Decompression Capability | 10 – 60 ft (3-18 m) |
Deep Stop | OPTIONAL – :02 COUNtdOWN TIMER AT 1/2 MAX DEPTH FOR DIVES DEEPER THAN 80 ft/25m |
Automatic Safety Stop Prompt | YES – ADJUSTABLE DEPTH AND TIME |
Audible Alarm | YES – MAY BE DEACTIVATED AND/OR CUSTOMIZED BY USER |
Alarm Acknowledgment (U/W Deactivation) | YES – PUSH BUTTON DEACTIVATES CURRENT ALARM |
Ascent Rate Range | 3,35 – 9 m/min -6,4 -18 m/min |
Ascent Rate Maximum | 30 fpm (<60 ft) / 9 m/min (<18m) 60 fpm (>60 ft) / 18 m/min (>18m) |
SmartGlo Backlight | YES – ADJUSTABLE DURATION |
Diver Replaceable Batteries | YES |
Battery Type | CR2450 |
Battery Life | 300 DIVE HOURS |
Data Retention (retains calculations indefinitely during battery change) | YES |
Low Battery Indicator (Graphic) | YES |
Calendar / Clock | DATE & TIME |
Operating Depth (NORM/FREE) | 330 ft / 100 m |
Operating Depth (GAUGE) | 399 ft / 120 m |
24 Hour Time to Fly Countdown | YES |
Gauge Mode Run Timer | NO |
Calculated Desaturation Fly Countdown | YES |
Dive Mode Displays | MAIN, UP TO 2 ALTERNATES AND 1 SECONDARY |
High O2 Alarm / Warning | 300 SOTU / DOTU |
High PO2 Alarm / Warning | 1.6 DEFAULT OR USER SETTING |
On-Unit Log Capacity | 24 DIVES |
Data Download | DIVERLOG+ VIA BLUETOOTH |
PC Settings Upload | DIVERLOG+ VIA BLUETOOTH |
Firmware Update | AUTOMATIC WHEN CONNECTED TO DIVERLOG+ |
Pre-Dive Planning Sequence | PUSH BUTTON 9-57 m |
Temperature Display | YES |
Nitrogen Tissue Loading Bar Graph | YES |
Oxygen Loading | NUMERIC % |
Variable Ascent Rate Bar Graph | YES |
No Decompression Time Remaining Display | YES |
O2 Time Remaining Display | YES |
Set Mode with Rapid Advance | YES |
Set FO2 Value (%) Gas 1 | AIR, 21-100% |
Set Audible Alarm On/Off | YES |
Set Max Depth Alarm | YES |
Set Elapsed Dive Time Alarm | YES |
Set Maximum Nitrogen Tissue Loading Bar Graph AlarmSet Maximum Nitrogen Tissue Loading Bar Graph Alarm | YES |
Set Personal Conservative Factor | YES |
Set Dive Time Remaining Alarm | YES |
Set Units Of Measurement | YES |
Set Hour Format (12/24 Hour) | YES |
Set Time of Day | YES |
Set Date | YES |
Set Maximum PO2 Alarm | YES |
Set FO2 50% Default | YES |
Set Backlight Duration | YES |
Set Safety Stop Time and Depth | YES |
Set Sampling Rate (OceanLog Download) | 1 (Free Dive Mode Only)/ 2/15/30/60 SECONDS |
Set Digital Gauge Mode On/Off | YES |
Set Water Activation On/Off | YES |
Set Free Dive Elapsed Dive Time Alarm | YES |
Set Free Dive Countdown Timer | YES |
Set Free Dive Max Depth #1 | YES |
Set Free Dive Max Depth #2 | YES |
Set Free Dive Max Depth #3 | YES |
Warranty | 2 YEAR |
