SANTI Men’s Drysuit Size Guide — cm
Size guide based on Santi sizing information.
All body measurements in centimetres (cm).
Santi men’s drysuit and undersuit body measurements for the E.Lite+ men’s cut.
How to measure for your Santi or Avatar drysuit
All body measurements in centimetres (cm). Use this measuring reference with the correct manufacturer table for your model and cut.
Before you start
Ask another person to measure you while you stand upright and look ahead. Wear thin, close-fitting clothing and use a soft tape marked in centimetres. Hold the tape against the body without compressing it. Record the actual body measurements; do not add extra room for an undersuit. Measure twice and resolve any difference before choosing a size.
Body measurements
- Height
- Barefoot, floor to the top of your head.
- Chest / bust
- Around the fullest part. Record breathing out and in.
- Waist
- For the men’s method, measure around navel level. For the women’s method, mark the natural waist with a narrow belt. Use the same marked line for back and side lengths.
- Hips
- Around the widest part of your seat and hips.
- Body trunk
- Start at the centre of the front neck base, take the tape down the front, between the legs through the crotch, and up the back to the prominent bone at the base of the neck. Follow the body contours. If measured in two sections, add them together.
- Inner arm
- With the arm extended straight out, measure along the underside from armpit to wrist. This is the inner-arm field in the size table.
- Bicep
- Measure around the widest relaxed upper arm. Tell your fitter if muscle flexion changes the measurement substantially.
- Forearm
- Around the widest part of your forearm.
- Inner leg
- Crotch to floor while standing barefoot.
- Thigh
- Around the thigh, 5 cm below the crotch.
- Calf
- Measure around the widest calf point. Keep this separate from calf height or the additional circumference taken 20 cm above the floor.
Additional fitting measurements
- Shoulder width
- Measure between the shoulder points across the back.
- Outer arm
- With the arm extended, measure from the back-neck bone across the shoulder to the wrist.
- Back length
- Measure from the back-neck bone down to the marked waist.
- Bust height and side length
- For fields on the women’s form: front neck base to bust point, and armpit to marked waist. Record these separately.
- Foot length
- Measure heel to longest toe while standing. Check both feet and record each in cm. Confirm footwear fit with the thermal socks you intend to use.
Check the fit with your diving layers
Try the suit with your intended undersuit and thermal socks. Check comfortable breathing, overhead reach, a shoulder hug and kneeling. Have your fitter check restriction, excess fabric, footwear and seals.
Avatar: choose from the model’s standard sizes. Santi: use the model’s size table; any modified or made-to-measure order needs the current manufacturer form and a dealer fitting. Measurements taken at home are a useful starting point, rather than a final custom-order specification.
Between sizes? Contact Dive Gear Australia for fitting help.
Watch Santi’s measuring demonstration
Manufacturer sources
© 2026 Dive Gear Australia. All rights reserved.
| Size | Height (cm) | Chest (cm) | Inner arm (cm) | Bicep (cm) | Forearm (cm) | Waist (cm) | Hips (cm) | Inner leg (cm) | Thigh (cm) | Calf (cm) | Body trunk (cm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
XS
|
162-166
|
84-88
|
51
|
28
|
26
|
70-74
|
84-88
|
74
|
50
|
34
|
155
|
|
S
|
168-172
|
90-94
|
52
|
29
|
27
|
76-80
|
90-94
|
76
|
52
|
36
|
160
|
|
SL
|
174-178
|
92-96
|
53
|
30
|
27
|
78-82
|
92-96
|
80
|
52
|
38
|
165
|
|
M
|
172-176
|
96-100
|
53
|
32
|
28
|
82-86
|
96-100
|
79
|
55
|
39
|
165
|
|
ML
|
176-180
|
96-100
|
55
|
32
|
29
|
82-86
|
96-100
|
84
|
55
|
40
|
170
|
|
MLL
|
182-186
|
100-104
|
57
|
33
|
29
|
84-88
|
100-104
|
88
|
55
|
40
|
175
|
|
LS
|
172-176
|
106-110
|
52
|
35
|
30
|
92-96
|
106-110
|
79
|
62
|
43
|
165
|
|
L
|
180-184
|
106-110
|
54
|
35
|
29
|
92-96
|
106-110
|
83
|
60
|
41
|
170
|
|
LL
|
184-188
|
106-110
|
56
|
36
|
30
|
92-96
|
106-110
|
86
|
61
|
42
|
175
|
|
LLL
|
190-194
|
110-114
|
58
|
37
|
30
|
98-102
|
110-114
|
89
|
61
|
42
|
180
|
|
XLS
|
174-178
|
112-116
|
54
|
38
|
31
|
100-104
|
112-116
|
80
|
65
|
44
|
170
|
|
XL
|
184-188
|
112-116
|
56
|
37
|
30
|
100-104
|
112-116
|
85
|
65
|
44
|
175
|
|
XLL
|
192-196
|
112-116
|
58
|
38
|
30
|
100-104
|
112-116
|
89
|
65
|
44
|
180
|
|
XXLS
|
176-182
|
118-122
|
55
|
40
|
31
|
108-112
|
118-122
|
80
|
68
|
46
|
175
|
|
XXL
|
190-194
|
118-122
|
57
|
40
|
31
|
108-112
|
118-122
|
84
|
68
|
46
|
185
|
|
XXXL
|
192-196
|
130-134
|
58
|
42
|
32
|
116-120
|
130-134
|
86
|
72
|
47
|
195
|
SANTI Flexsole Boot Size Guide
Choose the chart for your boot version
The Size & fit tab shows the current Flexsole 3.0 measurements in centimetres. Confirm the boot version on your drysuit order. Foot length and insole length are different measurements. The original Flex Sole conversions below must not be used as Flexsole 3.0 conversions.
Original Flex Sole size conversions
From the supplied SANTI Flex Sole chart. EU sizes are followed by US and UK sizes.
| SANTI Flex Sole size | EU | US | UK |
|---|---|---|---|
| S | 37-38 | 5-6 | 4-5 |
| M | 39-40 | 7-8 | 6-7 |
| L | 41-42 | 9 | 7-8 |
| XL | 43-44 | 10-11 | 9-10 |
| XXL | 45-46 | 12 | 11 |
| XXXL | 47-48 | 13-14 | 12-13 |
| XXXXL | 49-50 | 15 | 14-15 |
How to check your footwear fit
Stand with your heel against a wall, mark the end of the longest toe, and measure from the wall to the mark. Measure both feet. Check the required foot circumference wearing the intended thermal socks. Contact us to confirm the Flexsole version and size before a custom drysuit order.
Download SANTI's official Flexsole 3.0 chart (PDF)
| Flexsole 3.0 size | Foot length (cm) | Insole length (cm) | Foot circumference in Primaloft sock (cm) | Entire foot circumference in Primaloft sock (cm) |
|---|---|---|---|---|
|
XS
|
23
|
24
|
24
|
58
|
|
S
|
24
|
25
|
25
|
60
|
|
M
|
25
|
26
|
26
|
62
|
|
L
|
26
|
27
|
27
|
63
|
|
XL
|
27
|
28
|
28
|
65
|
|
XXL
|
28
|
29
|
29
|
66
|
|
XXXL
|
29
|
30
|
30
|
67
|
|
XXXXL
|
30
|
31
|
31
|
68
|

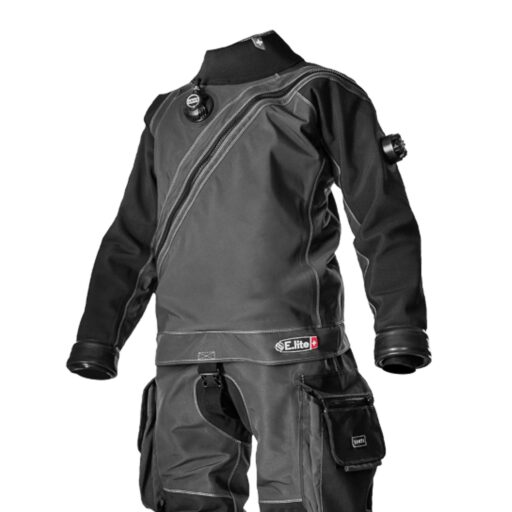

SANTI E.Lite Plus Men’s Drysuit
$5,480.00 inc. GST
The SANTI E.Lite Plus combines flexible ripstop trilaminate with durable reinforcement for recreational and technical diving.
Base price: $5,480 AUD. Custom made to order in all 16 standard men’s sizes. Optional extras cost additional and will be added separately. All sizes are currently out of stock.
Custom drysuit orders.
If your suit is made to your measurements or personalised specifications, it is excluded from change-of-mind refunds and exchanges. Please confirm your measurements, undergarments and chosen options with our team before ordering.
Read our returns policy. Need sizing help? Call 03 9702 3694.
SKU:
- Description
- Additional information
- Shipping
- Returns & Exchanges
- Click & Collect
- Frequently Asked Questions
- Reviews (0)

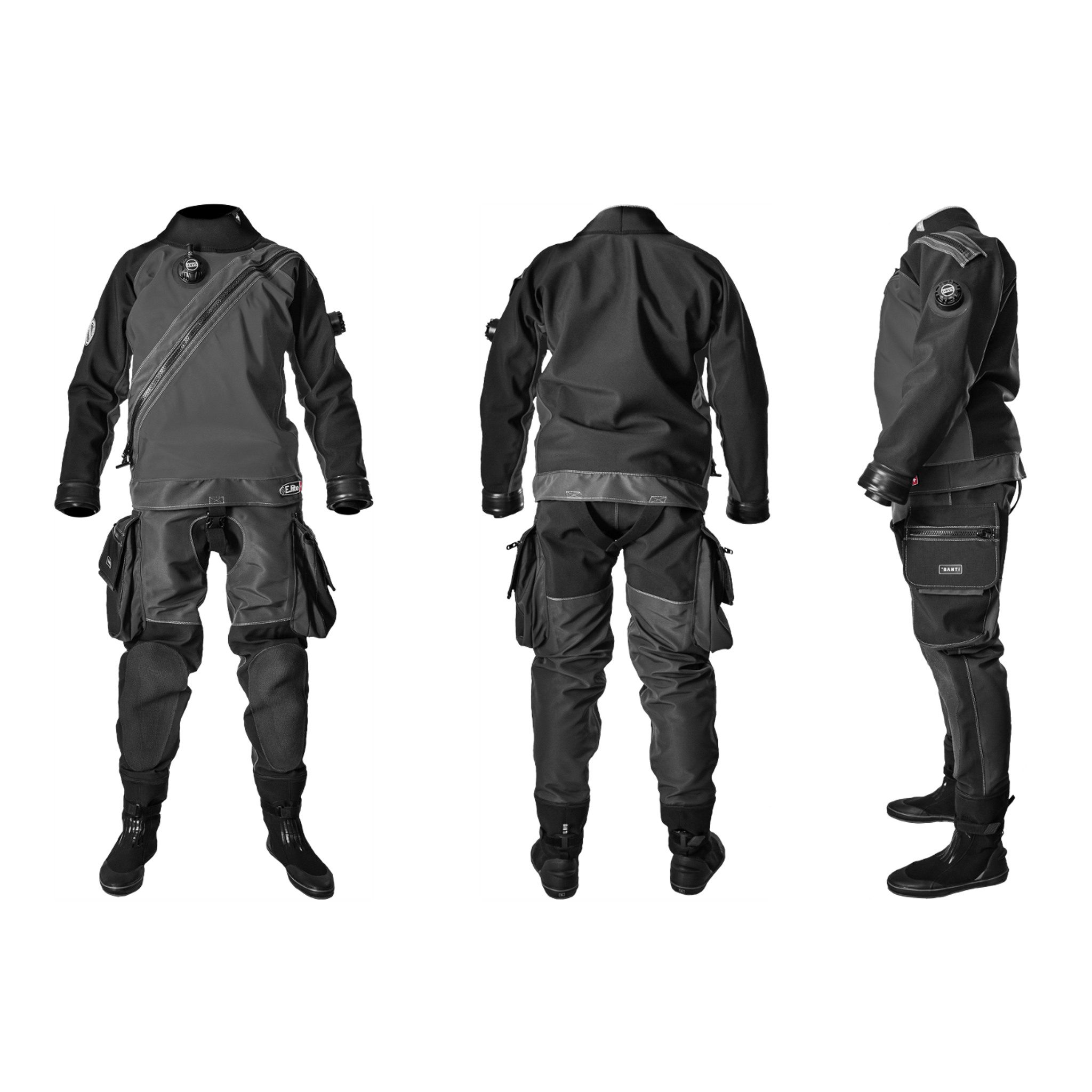

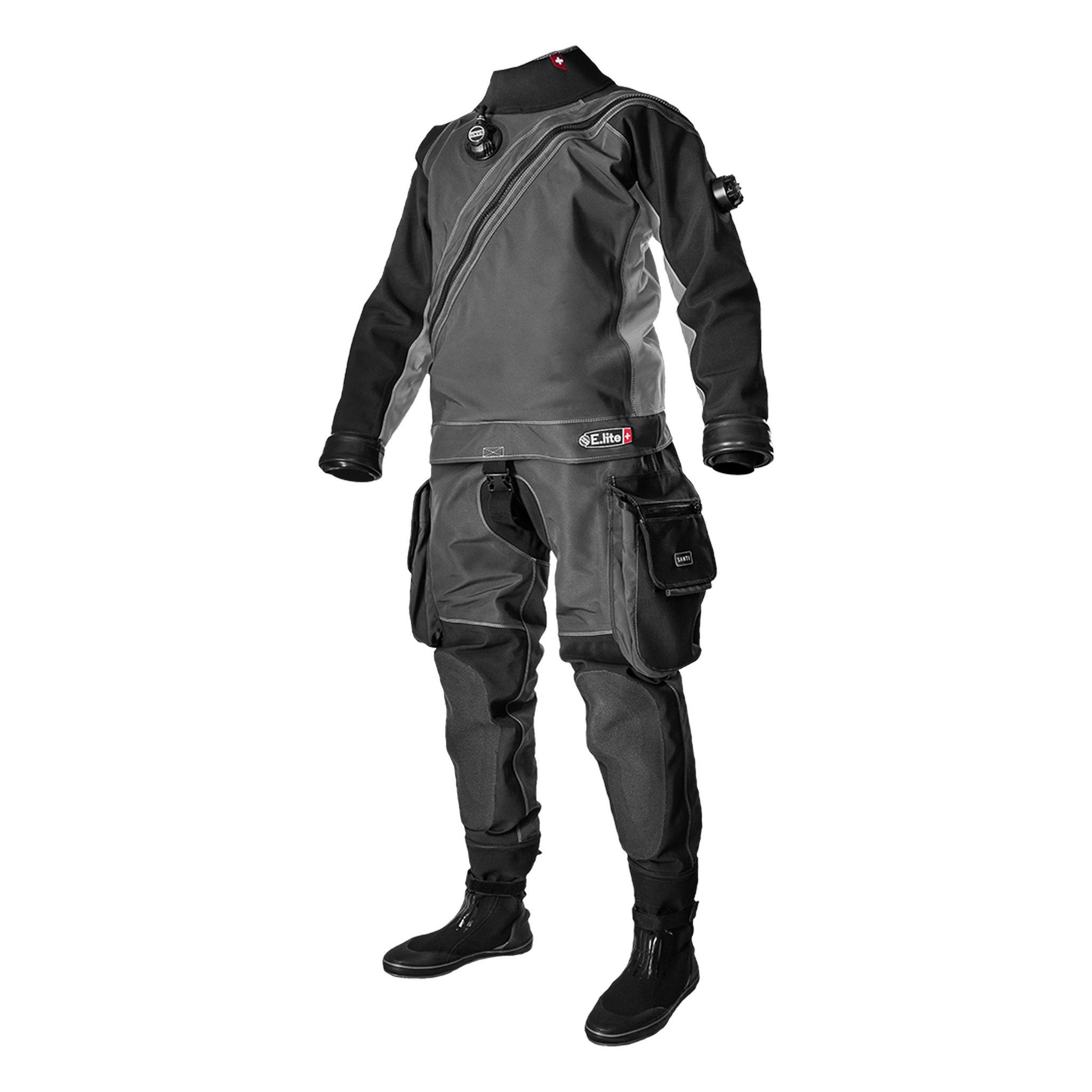

SANTI E.Lite Plus Men's Drysuit
Base price: $5,480 AUD for the standard configuration. This drysuit is custom made to order. Optional extras cost additional and will be added separately. All sizes are currently out of stock.
The SANTI Elite Plus (E.Lite+) combines flexible ripstop trilaminate with tougher fabric in areas exposed to wear. Its telescopic torso, front entry and reinforced knees suit divers who want freedom to reach their equipment while carrying the pockets and fittings needed for recreational or technical diving.
Features and Details
- Flexible ripstop fabric through the upper body and selected leg panels, with heavier E.Lite fabric protecting high-wear areas.
- Trilaminate construction with a waterproof membrane between protective fabric layers.
- Telescopic torso and shaped cut help you bend, kneel and reach valves when the suit is correctly fitted.
- Front dry zip with an additional protective cover.
- Two thigh cargo pockets with internal retention points, plus internal suspenders with a small pocket.
- Kevlar knee protection. Seals, wrist rings and footwear are confirmed with your individual order.
- Inflation and exhaust valve selection is confirmed with your individual order.
- 75 cm medium-pressure inflation hose and a drysuit travel bag; confirm the complete order specification before manufacture.
How the Features Help
The lighter panels allow the suit to move with you, while the heavier panels protect areas that regularly contact equipment or the environment. The butylene layer forms the waterproof barrier; thermal comfort comes mainly from the undersuit and base layers you choose.
The zip cover helps protect the dry zip from contact and debris. Cargo-pocket retention points keep clipped accessories organised, and the telescopic torso provides room for movement without relying only on excess suit length.
Technical Specs
| Model | SANTI Elite Plus / E.Lite+ |
|---|---|
| Garment type | Membrane drysuit; men's cut |
| Construction | Ripstop nylon / butylene trilaminate |
| Lighter panels | Ripstop Nylon / Butylene / Ripstop Nylon |
| Reinforced panels | Heavy ripstop trilaminate used in high-wear areas |
| Fabric weights — current manufacturer specification | 365 g/m² flexible panels; 535 g/m² reinforced panels |
| Weight | Approximately 3.9 kg in size L with equipment; final configuration affects weight |
| Entry | Front dry zip with protective cover |
| Torso | Telescopic torso with internal suspenders and pocket |
| Knee protection | Kevlar patches |
| Valves | Type confirmed with your individual order |
| Neck and wrist seals | Type and any ring system confirmed with your individual order |
| Footwear | Footwear type and size confirmed with your individual order |
| Storage | Two thigh cargo pockets with accessory retention points |
| Inflation hose | 75 cm medium-pressure hose |
| Standard size range | 16 men's sizes, XS to XXXL, including short and long fits |
| Order type | Made to order; final measurements, colours and fittings require confirmation |
Fit and Use
Compare your measurements with the model’s size guide and check the fit wearing the intended base layers, insulation and footwear. Reach overhead, bend and adopt your normal diving position without pulling tightly across the shoulders or crotch. Select the complete insulation system for your conditions, duration and personal needs; use a drysuit with appropriate training and the supplied instructions.
Materials and Order Options
Ripstop refers to the reinforcing weave in the fabric. The E.Lite+ uses different fabric weights across the suit to balance movement with resistance to wear. The weights above follow SANTI’s current model specification. Production details and fittings can vary, so we confirm the complete specification for your individual order.
Before manufacture, confirm the dry zip, valve selection, neck and wrist seals, hood, footwear and pocket arrangement. The displayed price covers the base configuration. Alternative seals, dry-glove systems, P-valves and other optional extras cost additional and are not automatically included. Your drysuit and undersuit should be fitted together.
Gear Care and Washing
Rinse the suit’s exterior with fresh water after each dive, paying attention to the zip, valve exteriors and areas that collect salt or sand. Clean the seals and wash the suit only using the method and cleaner approved by the suit manufacturer.
If the inside needs cleaning or has become wet, follow the manual for internal rinsing and drying. Dry the inside and outside completely in a shaded, ventilated place, supporting the suit on a suitable wide drysuit hanger.
Keep the dry zip clean and use only the zip maker’s specified lubricant and application points. Follow its required open or closed position for drying and storage, and avoid bending the zip sharply. Maintain latex, silicone or neoprene seals using the instructions for that exact material.
Do not machine wash, iron, tumble dry or use solvents or strong detergents. Store cool and dry away from sunlight, heaters and ozone sources. Inspect seals, seams, zip and valves before diving and follow the manufacturer’s service schedule.
| Size | XS, S, SL, M, ML, MLL, LS, L, LL, LLL, XLS, XL, XLL, XXLS, XXL, XXXL |
|---|---|
| Fit / Gender | Men's |
In-stock orders placed before 12 noon Melbourne time on weekdays are usually dispatched the same day once payment is confirmed. This excludes public holidays, pre-orders, backorders, special orders and custom orders. Dispatch times can vary. Delivery time depends on the carrier and your location.
Standard mainland Australian shipping is $20. Click & Collect from our Hallam store is free once your order is ready.
- Large or bulky gear: additional freight charges apply on top of standard shipping: large dive bags $30; long freediving fins $15; long spearguns $20. Scuba tank freight is shown at checkout.
- Rural, remote & offshore: rural means anywhere outside metropolitan areas. Carrier availability and additional charges may apply, including for island and territory destinations. Our team will contact you if an extra freight quote is needed.
The available delivery rate for your order is shown at checkout.
Need your gear urgently? You are welcome to arrange your own same-day courier or Uber pickup from Hallam. Call 03 9702 3694 before booking so we can confirm payment, that your order is packed and ready, and a collection time. Tell us who will collect and give your driver the order number. You arrange and pay the courier directly; delivery timing depends on the provider.
Contact us within 30 days of delivery to request a refund, exchange or optional store credit on eligible unused goods within Australia. Refunds go to the original payment method. Keep goods clean and undamaged with tags, original packaging and all accessories. No restocking fee applies to eligible returns meeting these conditions.
For change-of-mind returns and size exchanges, you pay return postage and replacement shipping. Original delivery charges are not refunded. Water-tested goods, clearly marked clearance items and genuinely custom-made or personalised items are excluded from change-of-mind returns. Ordinary discounted goods remain eligible.
For product problems, please call 03 9702 3694 before returning an item so we can help and explain the next steps.
Still unsure which size to choose?
Call our experienced dive instructors on 03 9702 3694 before ordering. Have your measurements and preferred product ready so we can help you choose the most suitable size. Fit varies between brands and models.
FREE CLICK & COLLECT
Usually ready same day*
Select local pickup at checkout. We will email you when your order is ready. Please wait for your ready-to-collect confirmation before visiting, then bring your confirmation email and photo ID.
Need your gear urgently? You can arrange your own same-day courier or Uber pickup. Call 03 9702 3694 before booking so we can confirm payment, that your order is packed and ready, and a collection time. Tell us who will collect and give your driver the order number. You arrange and pay the courier directly; delivery timing depends on the provider.
Collect from our Hallam store
Factory 4 / 56–60 Hallam South Rd
Hallam VIC 3803
*For items in stock at our Hallam store during opening hours, subject to order processing. Available-to-order and special-order items take longer. Collection is unavailable while the store is closed.
Can I collect my order from the store?
Yes. Choose free local pickup at checkout and wait for your ready-to-collect email before visiting our Hallam store. Bring your confirmation and photo ID. See Click & Collect details.
How do I choose the right size?
Use the product's size chart where available and compare your measurements with the guide for that brand. Sizing varies between brands and products. Still unsure? Call our experienced dive instructors on 03 9702 3694 during business hours before ordering. Have your measurements and preferred product ready. For fins and boots, tell us which socks or dive boots you will wear.
How do I check availability?
Select your required options, such as colour and size, to see availability for that variation. “Available to order” means the item may need to be sourced before dispatch. Call 03 9702 3694 to check the current lead time before ordering, especially if you need your gear for a trip or a particular date.
When will my order be dispatched?
In-stock orders placed before 12 noon Melbourne time on weekdays are usually dispatched the same day once payment is confirmed. This excludes public holidays, pre-orders, backorders, special orders and custom orders. Dispatch times can vary. Delivery time is separate from dispatch time and depends on your location and the carrier. Read our shipping information.
Can I exchange an item if it does not fit?
Contact us within 30 days of delivery to request a refund to the original payment method, exchange or optional store credit on eligible unused goods. You pay change-of-mind return postage and replacement shipping; original delivery charges are not refunded. No restocking fee applies to eligible returns. Clearance and genuinely custom-made items are excluded from change-of-mind returns. Read the return conditions and next steps.
Can you help me choose the right gear?
Yes. Call 03 9702 3694 during store hours or email [email protected]. Tell us which product you are considering and how you plan to use it.
