SANTI Men’s Drysuit Size Guide — cm
Size guide based on Santi sizing information.
All body measurements in centimetres (cm).
Santi men’s drysuit and undersuit body measurements for the E.Lite+ men’s cut.
How to measure for your Santi or Avatar drysuit
All body measurements in centimetres (cm). Use this measuring reference with the correct manufacturer table for your model and cut.
Before you start
Ask another person to measure you while you stand upright and look ahead. Wear thin, close-fitting clothing and use a soft tape marked in centimetres. Hold the tape against the body without compressing it. Record the actual body measurements; do not add extra room for an undersuit. Measure twice and resolve any difference before choosing a size.
Body measurements
- Height
- Barefoot, floor to the top of your head.
- Chest / bust
- Around the fullest part. Record breathing out and in.
- Waist
- For the men’s method, measure around navel level. For the women’s method, mark the natural waist with a narrow belt. Use the same marked line for back and side lengths.
- Hips
- Around the widest part of your seat and hips.
- Body trunk
- Start at the centre of the front neck base, take the tape down the front, between the legs through the crotch, and up the back to the prominent bone at the base of the neck. Follow the body contours. If measured in two sections, add them together.
- Inner arm
- With the arm extended straight out, measure along the underside from armpit to wrist. This is the inner-arm field in the size table.
- Bicep
- Measure around the widest relaxed upper arm. Tell your fitter if muscle flexion changes the measurement substantially.
- Forearm
- Around the widest part of your forearm.
- Inner leg
- Crotch to floor while standing barefoot.
- Thigh
- Around the thigh, 5 cm below the crotch.
- Calf
- Measure around the widest calf point. Keep this separate from calf height or the additional circumference taken 20 cm above the floor.
Additional fitting measurements
- Shoulder width
- Measure between the shoulder points across the back.
- Outer arm
- With the arm extended, measure from the back-neck bone across the shoulder to the wrist.
- Back length
- Measure from the back-neck bone down to the marked waist.
- Bust height and side length
- For fields on the women’s form: front neck base to bust point, and armpit to marked waist. Record these separately.
- Foot length
- Measure heel to longest toe while standing. Check both feet and record each in cm. Confirm footwear fit with the thermal socks you intend to use.
Check the fit with your diving layers
Try the suit with your intended undersuit and thermal socks. Check comfortable breathing, overhead reach, a shoulder hug and kneeling. Have your fitter check restriction, excess fabric, footwear and seals.
Avatar: choose from the model’s standard sizes. Santi: use the model’s size table; any modified or made-to-measure order needs the current manufacturer form and a dealer fitting. Measurements taken at home are a useful starting point, rather than a final custom-order specification.
Between sizes? Contact Dive Gear Australia for fitting help.
Watch Santi’s measuring demonstration
Manufacturer sources
© 2026 Dive Gear Australia. All rights reserved.
| Size | Height (cm) | Chest (cm) | Inner arm (cm) | Bicep (cm) | Forearm (cm) | Waist (cm) | Hips (cm) | Inner leg (cm) | Thigh (cm) | Calf (cm) | Body trunk (cm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
XS
|
162-166
|
84-88
|
51
|
28
|
26
|
70-74
|
84-88
|
74
|
50
|
34
|
155
|
|
S
|
168-172
|
90-94
|
52
|
29
|
27
|
76-80
|
90-94
|
76
|
52
|
36
|
160
|
|
SL
|
174-178
|
92-96
|
53
|
30
|
27
|
78-82
|
92-96
|
80
|
52
|
38
|
165
|
|
M
|
172-176
|
96-100
|
53
|
32
|
28
|
82-86
|
96-100
|
79
|
55
|
39
|
165
|
|
ML
|
176-180
|
96-100
|
55
|
32
|
29
|
82-86
|
96-100
|
84
|
55
|
40
|
170
|
|
MLL
|
182-186
|
100-104
|
57
|
33
|
29
|
84-88
|
100-104
|
88
|
55
|
40
|
175
|
|
LS
|
172-176
|
106-110
|
52
|
35
|
30
|
92-96
|
106-110
|
79
|
62
|
43
|
165
|
|
L
|
180-184
|
106-110
|
54
|
35
|
29
|
92-96
|
106-110
|
83
|
60
|
41
|
170
|
|
LL
|
184-188
|
106-110
|
56
|
36
|
30
|
92-96
|
106-110
|
86
|
61
|
42
|
175
|
|
LLL
|
190-194
|
110-114
|
58
|
37
|
30
|
98-102
|
110-114
|
89
|
61
|
42
|
180
|
|
XLS
|
174-178
|
112-116
|
54
|
38
|
31
|
100-104
|
112-116
|
80
|
65
|
44
|
170
|
|
XL
|
184-188
|
112-116
|
56
|
37
|
30
|
100-104
|
112-116
|
85
|
65
|
44
|
175
|
|
XLL
|
192-196
|
112-116
|
58
|
38
|
30
|
100-104
|
112-116
|
89
|
65
|
44
|
180
|
|
XXLS
|
176-182
|
118-122
|
55
|
40
|
31
|
108-112
|
118-122
|
80
|
68
|
46
|
175
|
|
XXL
|
190-194
|
118-122
|
57
|
40
|
31
|
108-112
|
118-122
|
84
|
68
|
46
|
185
|
|
XXXL
|
192-196
|
130-134
|
58
|
42
|
32
|
116-120
|
130-134
|
86
|
72
|
47
|
195
|
SANTI Flexsole Boot Size Guide
Choose the chart for your boot version
The Size & fit tab shows the current Flexsole 3.0 measurements in centimetres. Confirm the boot version on your drysuit order. Foot length and insole length are different measurements. The original Flex Sole conversions below must not be used as Flexsole 3.0 conversions.
Original Flex Sole size conversions
From the supplied SANTI Flex Sole chart. EU sizes are followed by US and UK sizes.
| SANTI Flex Sole size | EU | US | UK |
|---|---|---|---|
| S | 37-38 | 5-6 | 4-5 |
| M | 39-40 | 7-8 | 6-7 |
| L | 41-42 | 9 | 7-8 |
| XL | 43-44 | 10-11 | 9-10 |
| XXL | 45-46 | 12 | 11 |
| XXXL | 47-48 | 13-14 | 12-13 |
| XXXXL | 49-50 | 15 | 14-15 |
How to check your footwear fit
Stand with your heel against a wall, mark the end of the longest toe, and measure from the wall to the mark. Measure both feet. Check the required foot circumference wearing the intended thermal socks. Contact us to confirm the Flexsole version and size before a custom drysuit order.
Download SANTI's official Flexsole 3.0 chart (PDF)
| Flexsole 3.0 size | Foot length (cm) | Insole length (cm) | Foot circumference in Primaloft sock (cm) | Entire foot circumference in Primaloft sock (cm) |
|---|---|---|---|---|
|
XS
|
23
|
24
|
24
|
58
|
|
S
|
24
|
25
|
25
|
60
|
|
M
|
25
|
26
|
26
|
62
|
|
L
|
26
|
27
|
27
|
63
|
|
XL
|
27
|
28
|
28
|
65
|
|
XXL
|
28
|
29
|
29
|
66
|
|
XXXL
|
29
|
30
|
30
|
67
|
|
XXXXL
|
30
|
31
|
31
|
68
|
SANTI E.Lite Men’s Drysuit
$5,200.00 inc. GST
The SANTI E.Lite is a durable membrane drysuit for divers who want robust fabric and a comfortable fit.
Base price: $5,200 AUD. Custom made to order in 16 standard men’s sizes. Optional extras are additional and will be added separately. All sizes are currently out of stock.
SKU:
- Description
- Additional information
- Shipping
- Returns & Exchanges
- Click & Collect
- Frequently Asked Questions
- Reviews (0)

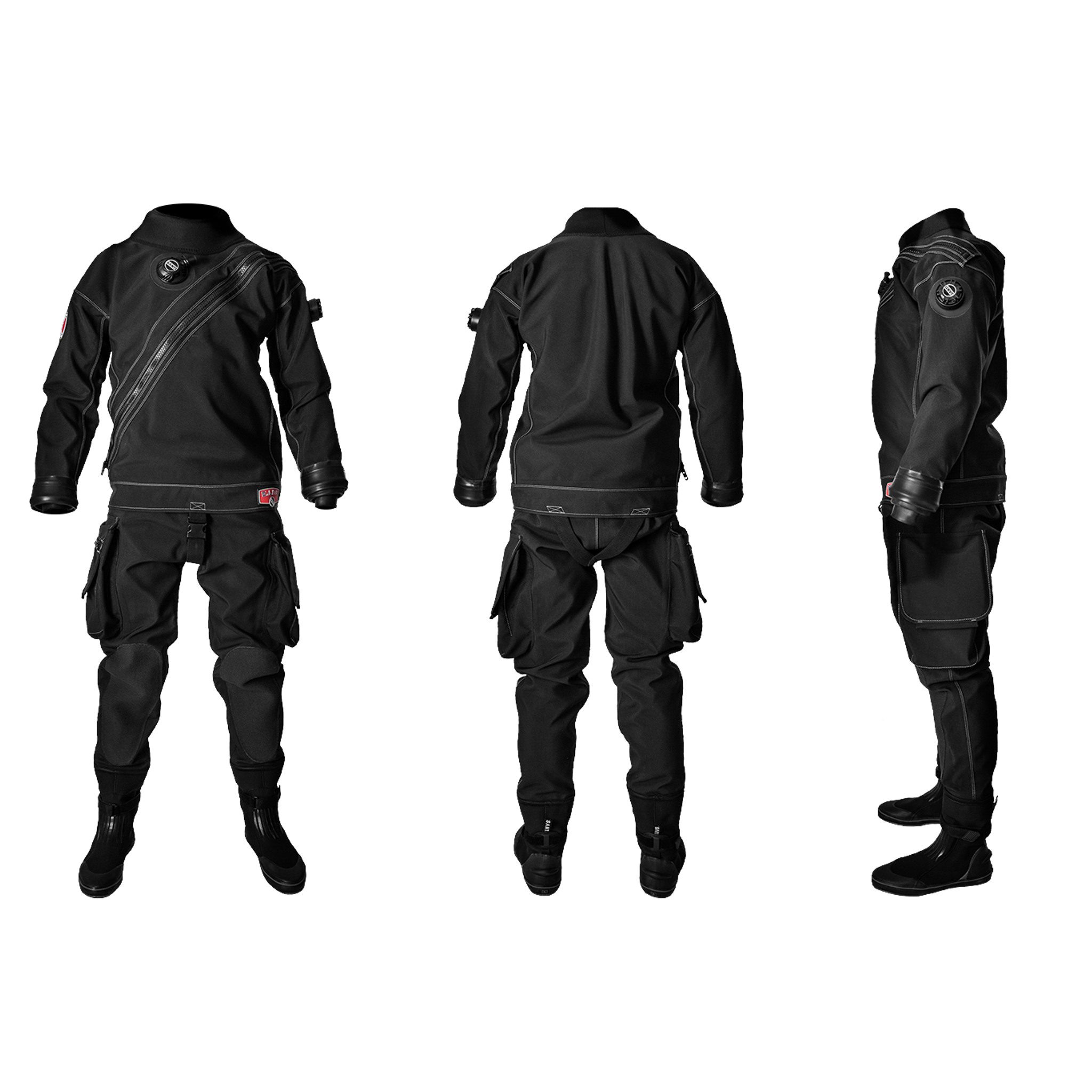

SANTI E.Lite Men's Drysuit
The SANTI E.Lite is a durable membrane drysuit for divers who want robust fabric and a comfortable fit. Its 535 g/m² ripstop construction and reinforced knees suit recreational, technical and demanding working environments.
Base price: $5,200 AUD for the standard configuration. These suits are custom made to order. Optional extras cost additional and will be added separately. Confirm measurements, colours and the complete specification before manufacture. All listed sizes are currently out of stock.
Features and Details
- 535 g/m² fabric construction.
- Kevlar knee patches.
- Y-cut torso with shoulder-cut sleeves and a classic stitched crotch.
- Covered dry zip and internal suspenders with a small pocket.
- Ripstop E.Lite fronts with Cordura sides, wide hook-and-loop flaps, retention points and drainage mesh.
How the Features Help
The heavier ripstop fabric resists abrasion, punctures and tearing while retaining useful flexibility. A shaped torso and internal suspenders help position the suit comfortably, and thigh pockets keep dive accessories organised.
As a membrane drysuit, insulation comes mainly from the undersuit and base layers selected for the dive. Fit the complete layering system together.
Technical Specs
| Model | SANTI E.Lite Men’s Drysuit |
|---|---|
| Cut | Men’s |
| Construction | Ripstop nylon outer, waterproof membrane and polyester inner |
| Fabric weights | 535 g/m² |
| Reinforcement | Kevlar knee patches |
| Torso and leg construction | Y-cut torso with shoulder-cut sleeves and a classic stitched crotch |
| Reference weight | 4.2 kg in men’s size L with footwear; final configuration affects weight |
| Storage | Ripstop E.Lite fronts with Cordura sides, wide hook-and-loop flaps, retention points and drainage mesh |
| Suspenders | Internal suspenders with a small pocket |
| Dry zip | Protective cover; final zip configuration confirmed with the order |
| Standard sizes | XS, S, SL, M, ML, MLL, LS, L, LL, LLL, XLS, XL, XLL, XXLS, XXL, XXXL |
| Order type | Custom made to order; base price for standard configuration |
Fit and Use
Use the SANTI men’s drysuit size guide to compare body measurements in centimetres. Check the fit wearing your intended base layers, undersuit and footwear. You should be able to bend, kneel and reach your valves without the suit pulling tightly across your shoulders or crotch.
The size list includes 16 standard men’s sizes, including the relevant short and long fittings. Final measurements and any made-to-measure alterations must be confirmed for your individual order. Use a drysuit with appropriate training and follow the supplied instructions.
Materials and Order Options
Ripstop is the reinforcing weave in the outer fabric. The material weights above follow SANTI’s current model specifications. Production details and finished weight can vary with the final configuration.
The displayed price is the base price, not a fully optioned quote. Neck and wrist seals, glove rings, zip choice, valves, hood, footwear, pocket arrangement, colours and other upgrades must be confirmed when ordering. Optional extras are not included unless specifically agreed. Photographs show example configurations.
View SANTI’s official model information.
Gear Care and Washing
After diving, rinse the outside thoroughly with fresh water, especially after salt water use. Remove salt, sand and dirt around the zip and valve exteriors. Avoid solvents and strong detergents.
If the suit becomes wet inside, dry the inside completely, then the outside. Use a wide drysuit hanger in shade with good ventilation. Keep it away from direct sunlight, heaters, open flames, electric motors and other ozone sources.
Clean and lubricate the dry zip only as directed by its manufacturer. Follow the instructions for the fitted seal material and zip, including their required storage position. Store the suit clean and dry; if folding, avoid sharp bends or pressure on the zip.
Inspect the seals, seams, zip and valves before diving. Follow the supplied manual and have damaged parts serviced before use. Read SANTI’s care instructions and the SANTI drysuit manual.
