Faber Cylinder Specs 10.5>

Specification: BS 5045 Pt 1

Manufacturer: Faber (Italy)

Material: Chromium-Molybdenum Alloy Steel

Manufacturing Process: Cold deep drawing from steel plate

Primary Finish: hot zinc sprayed, layer thickness 60/70 micrometre

Final Finish: 2 part polyurethane paint (white), sprayed and air-dried

Internal Finish: Surface chemically treated with Ferrous Phosphate

Water Capacity (Litre) 10.5 Litre 12 Litre 12 HP Litre 12 Comp 15 Litre 18 Litre
Approx Volume (Cu Ft)
85
100
125
100
125
150
Fill Pressure (Bar)
232
232
300
232
232
232
Test Pressure (Bar)
348
348
468
348
348
348
Tare Weight (Kg)
11.3
12.9
16.7
14.2
16.5
22.4
Length (mm)
560
625
635
515
610
715
Diameter (mm)
178
178
178
204
204
204
Neck Thread
3⁄4" NPSM
3⁄4" NPSM
3⁄4" NPSM
3⁄4" NPSM
3⁄4" NPSM
3⁄4" NPSM
Valve Options
DIN/Yoke, HP DIN
DIN/Yoke, HP DIN
HP DIN
DIN/Yoke, HP DIN
DIN/Yoke, HP DIN
DIN/Yoke, HP DIN
Approx Buoyancy Kg Full Salt Water
-2.91
-3.09
-7.4
-4.61
-4.48
-7.33
Approx Buoyancy Empty Salt Water
-0.08
0.19
-3.23
-1.33
-0.45
-2.48

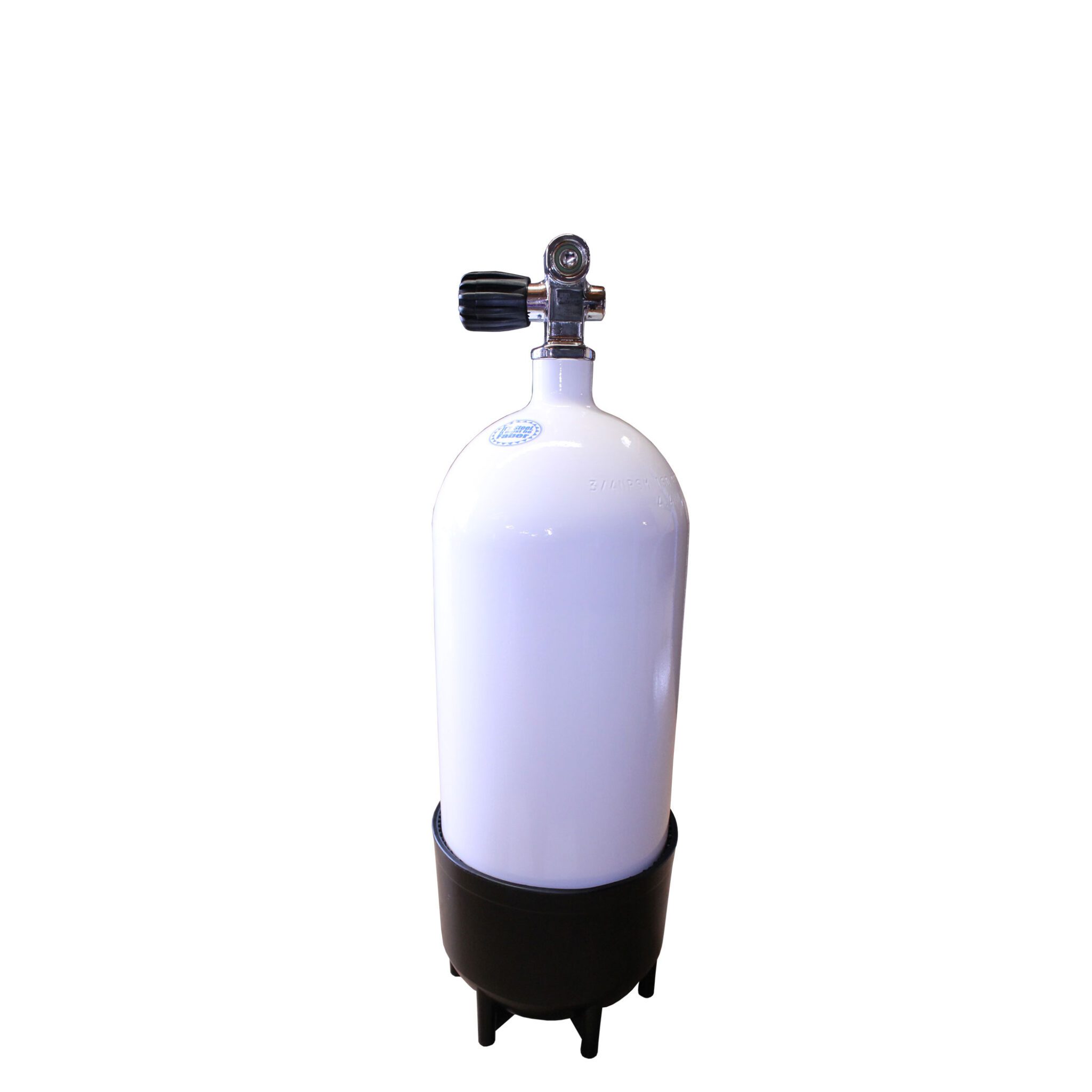

Faber 15 Litre 232 Bar Steel Diving Tank

$789.00 inc. GST

Tank Sizes Faber
SKU: CYL151 Category: Tag: Brand:
