Apeks XTX200 WTX Harness System D30
From: Original price was: $3,559.00.$3,159.00Current price is: $3,159.00. inc. GST

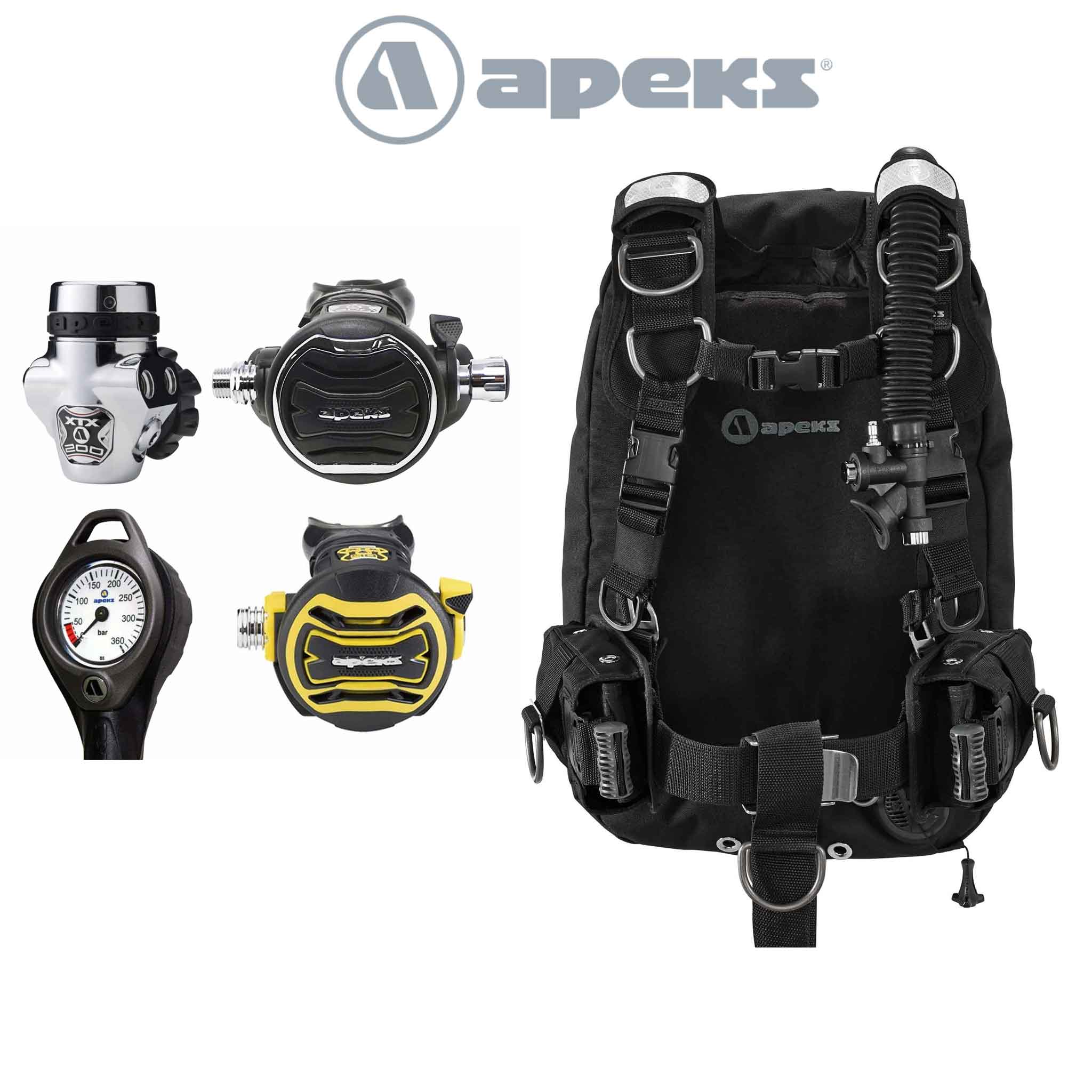

Apeks XTX200 WTX Harness System D30: the base bundle includes the items below.
- Regulator: Apeks XTX200 & XTX40 Regulator Set Din
- Regulator: Apeks Pressure Gauge (SPG) With Miflex Hose
- Apeks WTX D30 Wing
- Apeks WTX Harness For Tech Diving and Travel
Optional extras are added only when selected.
- Description
- Specifications
- Additional information
- Shipping
- Returns & Exchanges
- Click & Collect
- Frequently Asked Questions
Apeks XTX200 WTX Harness System D30
The Apeks XTX200 WTX Harness System D30 is the best tech/recreational single tank wing setup for diving. It’s great for everyday use or the light travel backplate makes it ideal for travel. This setup caters to both beginners and experienced divers. The Apeks WTX range offers incredible customisation and personalisation to suit any need.
Apeks WTX D30 Wing
Single cylinder wings, often referred to as doughnuts, are oval-shaped air cells or bladders that are not permanently attached to a harness. While single cylinder wings have their origins in the realm of technical diving, they are becoming prevalent in the recreational community.
Not only are these single cylinder wings streamlined, but due to their continuous loop shape, they are very stable underwater. There is no dramatic shift of air from left to right.
Apeks WTX Harness
Each component of the Apeks WTX Harness is very comfortable and easy to get in and out of with its buckles on the shoulder straps and chest strap. This rig can also be configured into a highly technical rig for those trained to push the limits or scaled down to make a travel-friendly set-up suitable for any diver. The harness also has a pocket where you can easily insert a steel backplate under the front padding for use with a twin tank setup
The WTX and WTX-D Series is a selection of harnesses, buoyancy cells, and accessories that offer unparalleled versatility due to the whole system’s modular nature.
This harness is Apeks most versatile yet features a range of customisation options.
Apeks WTX Harness Features
- Can mount directly to a single cylinder using dual nylon cylinder bands or a single tank adapter.
- Can accept a WTX Back Plate for heavy loads such as twin steel cylinders.
- Multiple grommet settings on the waistband allow the attachment of the SureLock™ weight system.
- Open shoulder design allows a diver to add or remove hardware for total customisation
- Made from rugged 1050D Ballistic Nylon.
- Removable crotch strap made of 2″ (5cm) soft webbing.
- 6-two inch stainless steel D-rings (2, angled, on shoulders, two on the hips and two on the crotch strap).
- 6-one-inch stainless steel D-rings along the sides accommodate light canisters, argon bottles or other accessories.
- 2-one-inch stainless steel D-rings along the lower back are for marker buoys, reels or other accessories.
- Removable back pad.
- Heavy-duty waist buckle made of stainless steel.
- Stainless steel tri-loaders distribute the load between the back, waist and shoulders for a great fit.
- SOLAS reflector airway hold-downs can be removed or repositioned.
- The chest strap comes standard.
- Available in 4 sizes: S, M, L & XL.
- The WTX Harness also includes two tank bands.
WTX Technical Specs
- Material 1050D Nylon
- Triloaders Stainless steel
- D-Rings Stainless steel/total of 14
- Waist buckle Stainless steel
- Backpad Removable
- Airway hold-downs Made of SOLAs reflectors, removable
- Crotch strap Yes, removable
- Model Number BT1210101
Optional: Apeks Surelock Weight System 2 x 10LB/4.5KG
SureLock™ is the best mechanical weight release system in the industry today. This popular accessory is ideal when it becomes necessary to add additional weight to your rig. Using the included hardware, they may be bolted to the WTX harness or to the SureLock™ Attachments. A simple click is all that is needed to engage the weights, and a simple pull on the handle to release them.
Optional: Trim Pocket Pair
They may be added to your rig to increase weight capacity or to trim your orientation in the water.
Specifications
Lift and dry weight can vary by size and configuration. “Not confirmed” means a reliable figure is not yet available for this model.
| BCD model / configuration | Apeks WTX-D30 with WTX harness |
|---|---|
| BCD style | Harness and donut wing |
| Fit / gender | Unisex |
| Lift capacity | 13.6 kg (30 lb) |
| Product weight | Not confirmed |
| Integrated weights | Optional SureLock II pockets |
| Tank configuration | Single cylinder, maximum 15 L |
| Brand | Apeks Dive Gear |
| Air bladder material | 22 mil black urethane |
| Bladder cover | 1000D Armorshield Cordura |
| Tank band | 2 nylon bands included with harness |
| Inflator | K-style with brass buttons; 16-inch oval hose |
| Harness | WTX harness; 1050D ballistic nylon |
| Size / adjustment | S, M, L or XL harness |
| Backplate | WTX harness support; separate metal backplate not included |
| D-rings | 14 stainless steel on harness |
| Dump valves | Lower-left flat valve |
| Crotch strap | Removable 2-inch strap |
| Specification notes | BCD specifications describe the required wing and WTX harness. Weight pockets and other selectable extras are optional. Total assembled weight is not confirmed. |
Sources: Apeks WTX-D30 · Apeks WTX harness
Specifications checked: 2026-09-23
Apeks WTX Harness For Tech Diving and Travel
| Size | Small, Medium, Large, XLarge |
|---|
