Apeks DSX Dive Computer With O2 Analyser
Original price was: $2,000.00.$1,799.00Current price is: $1,799.00. inc. GST
The Apeks DSX Dive Computer supports open-circuit, sidemount and closed-circuit configurations, with monitoring for up to six compatible transmitters. Surface GPS, a digital compass and vibration alerts add navigation and notification functions. The gas-analysis module is included, but its oxygen sensor cell must be purchased separately.
SKU: NS158000
Frequently Bought Together
- Description
- Technical Specs
- Product Manual
- Shipping
- Returns & Exchanges
- Click & Collect
- Frequently Asked Questions
- Reviews (0)

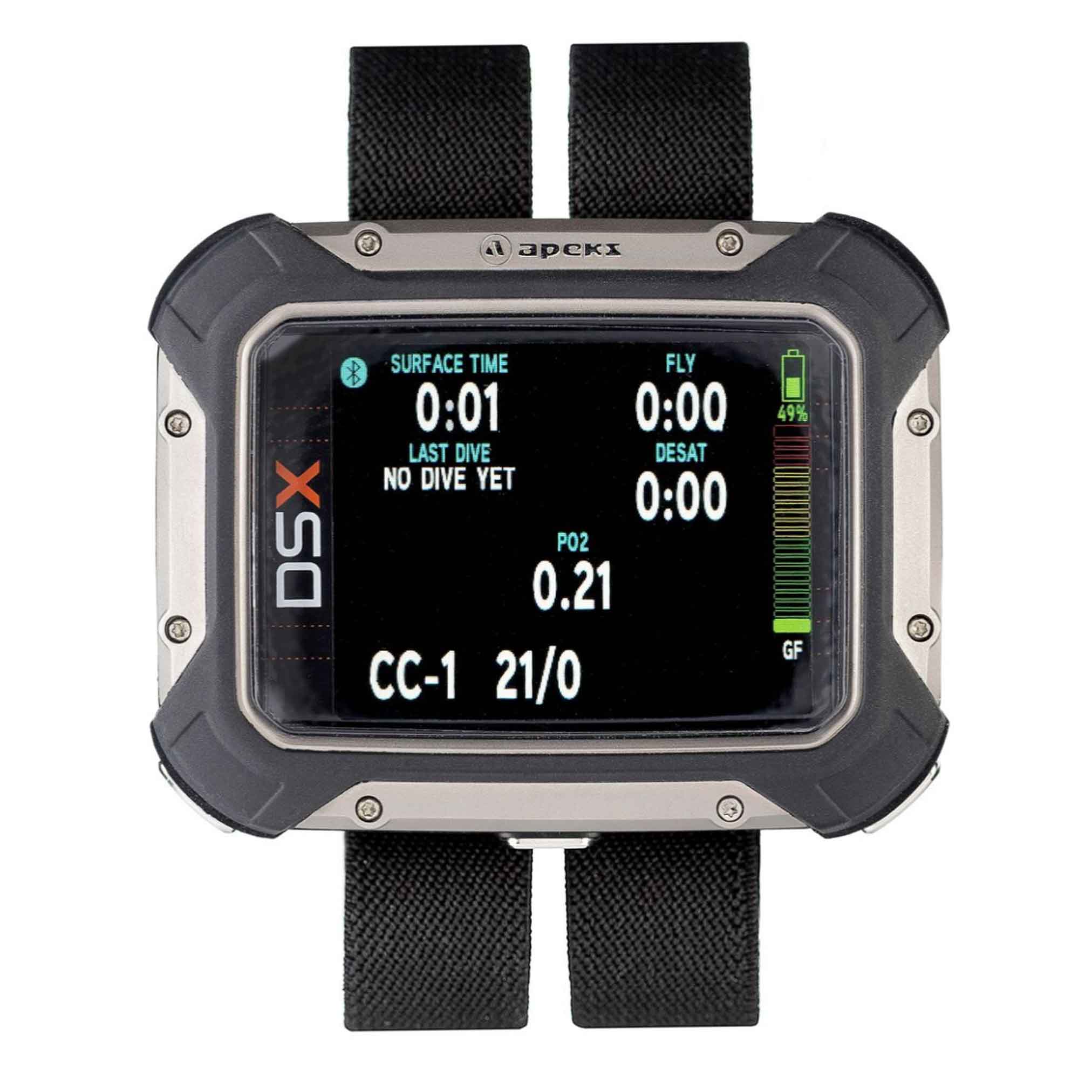

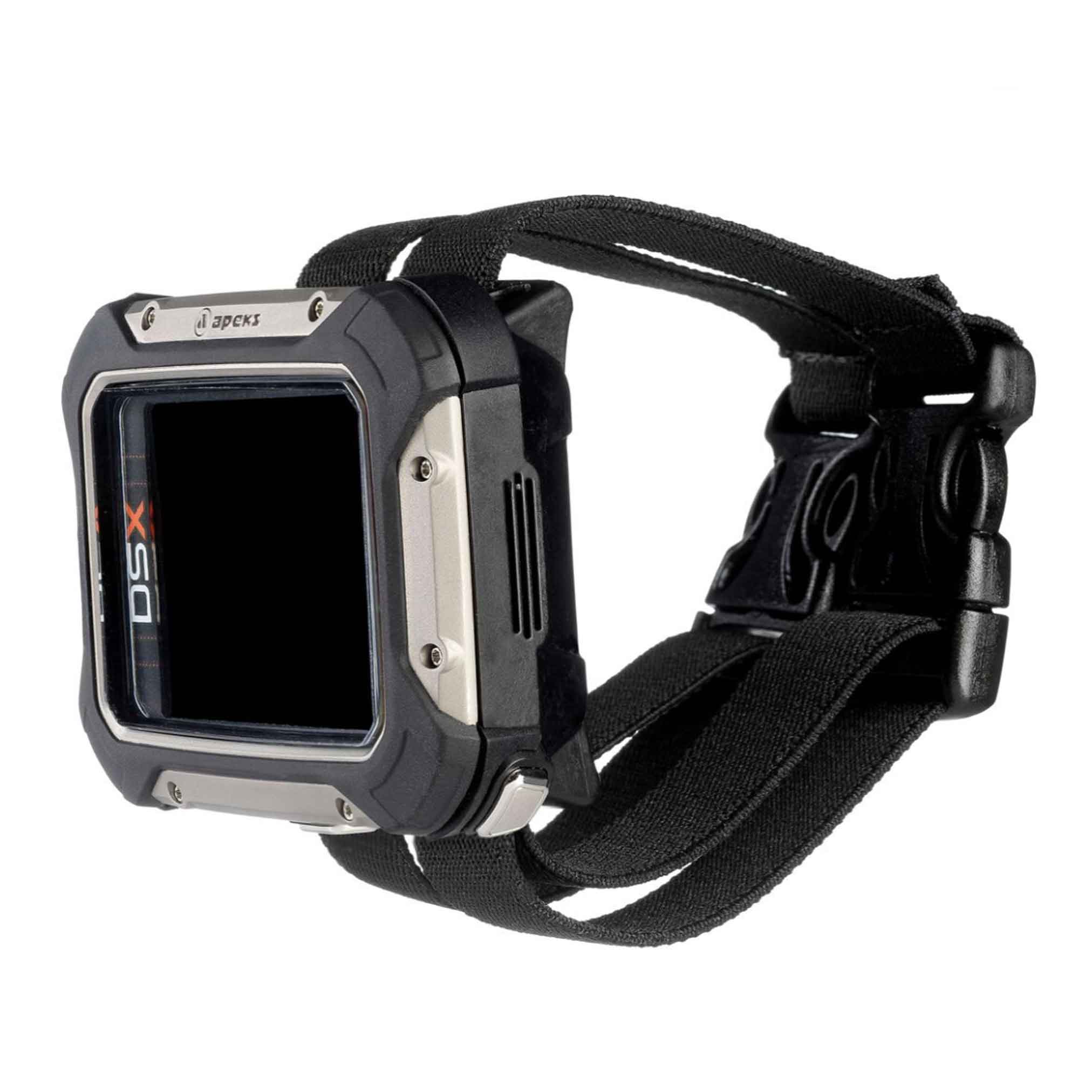

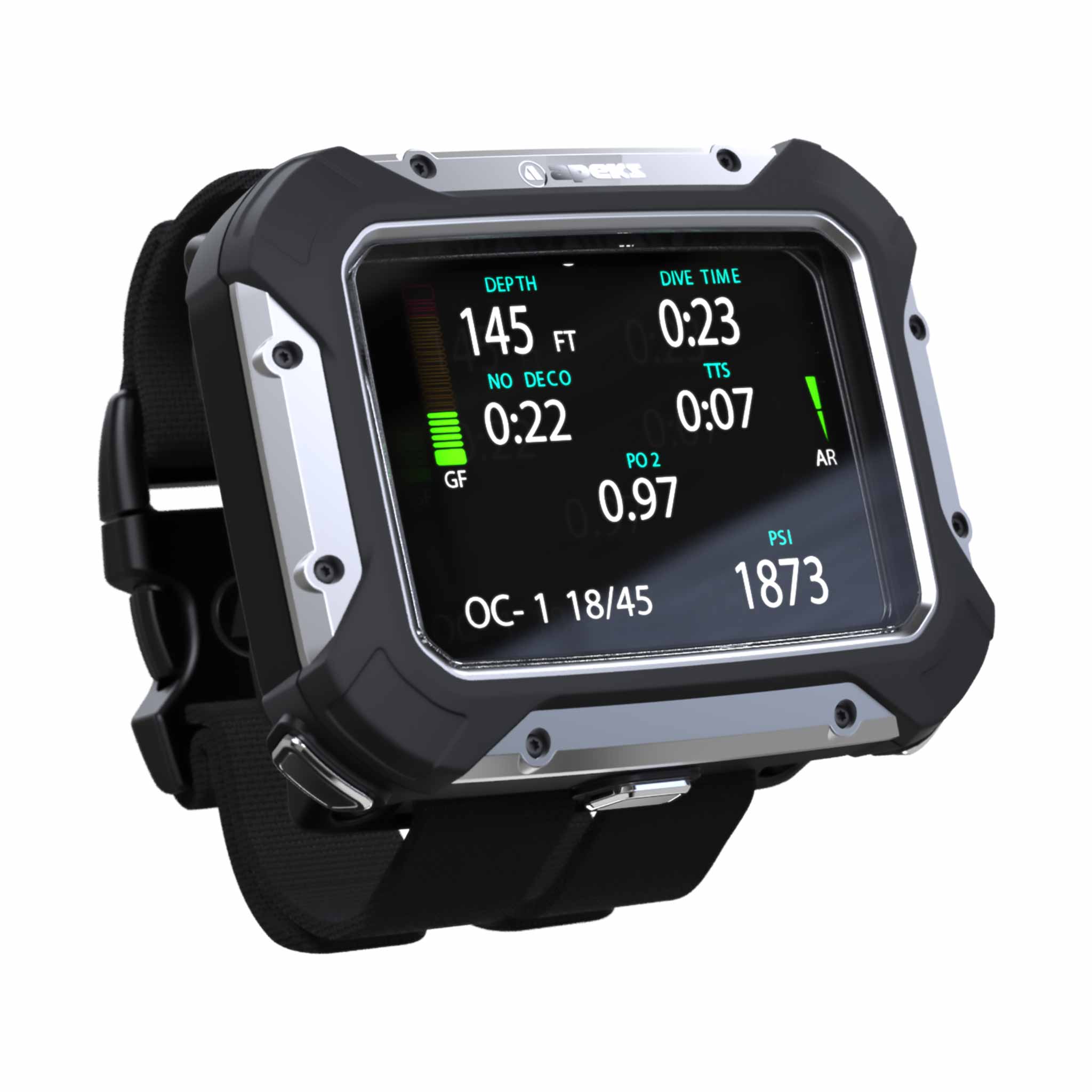

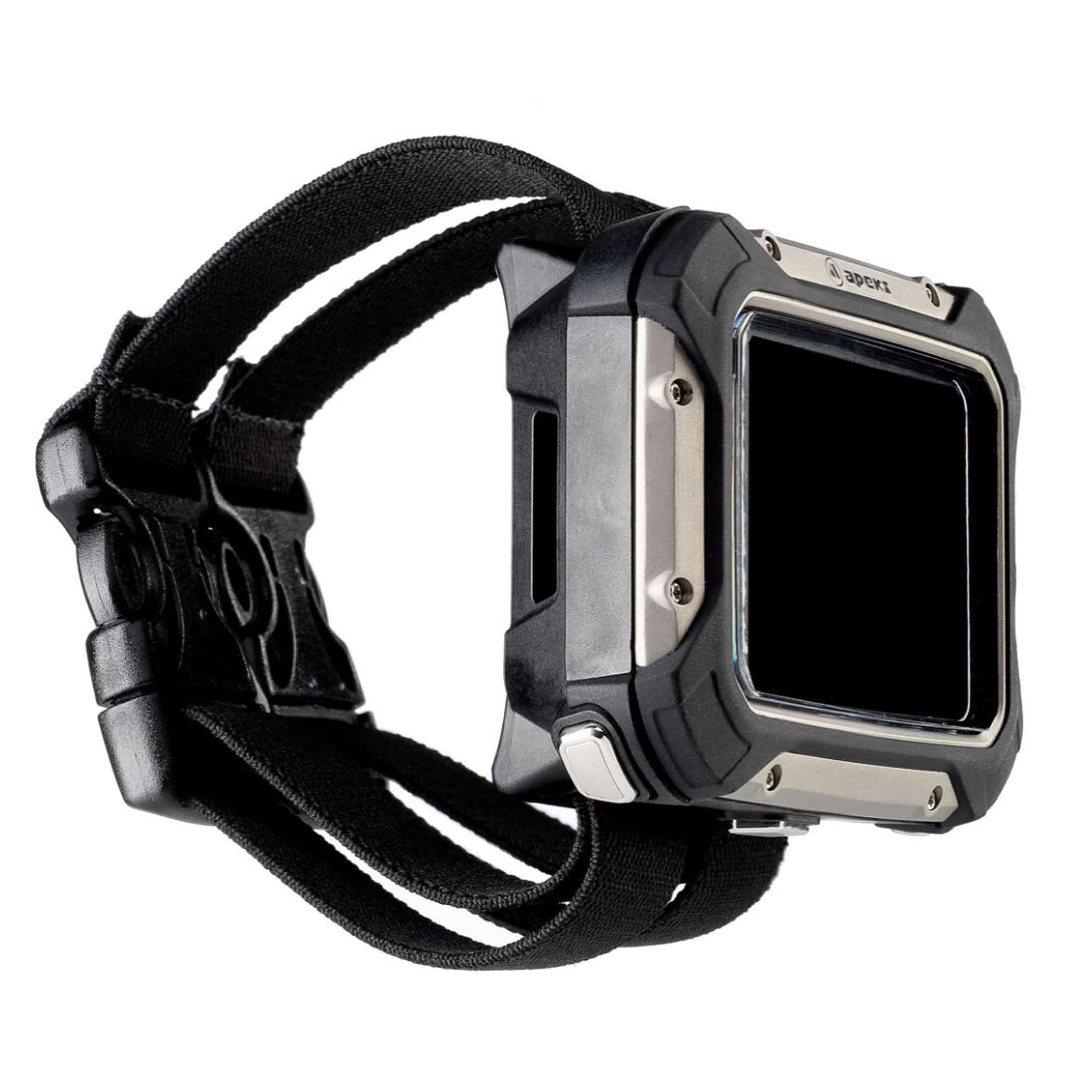

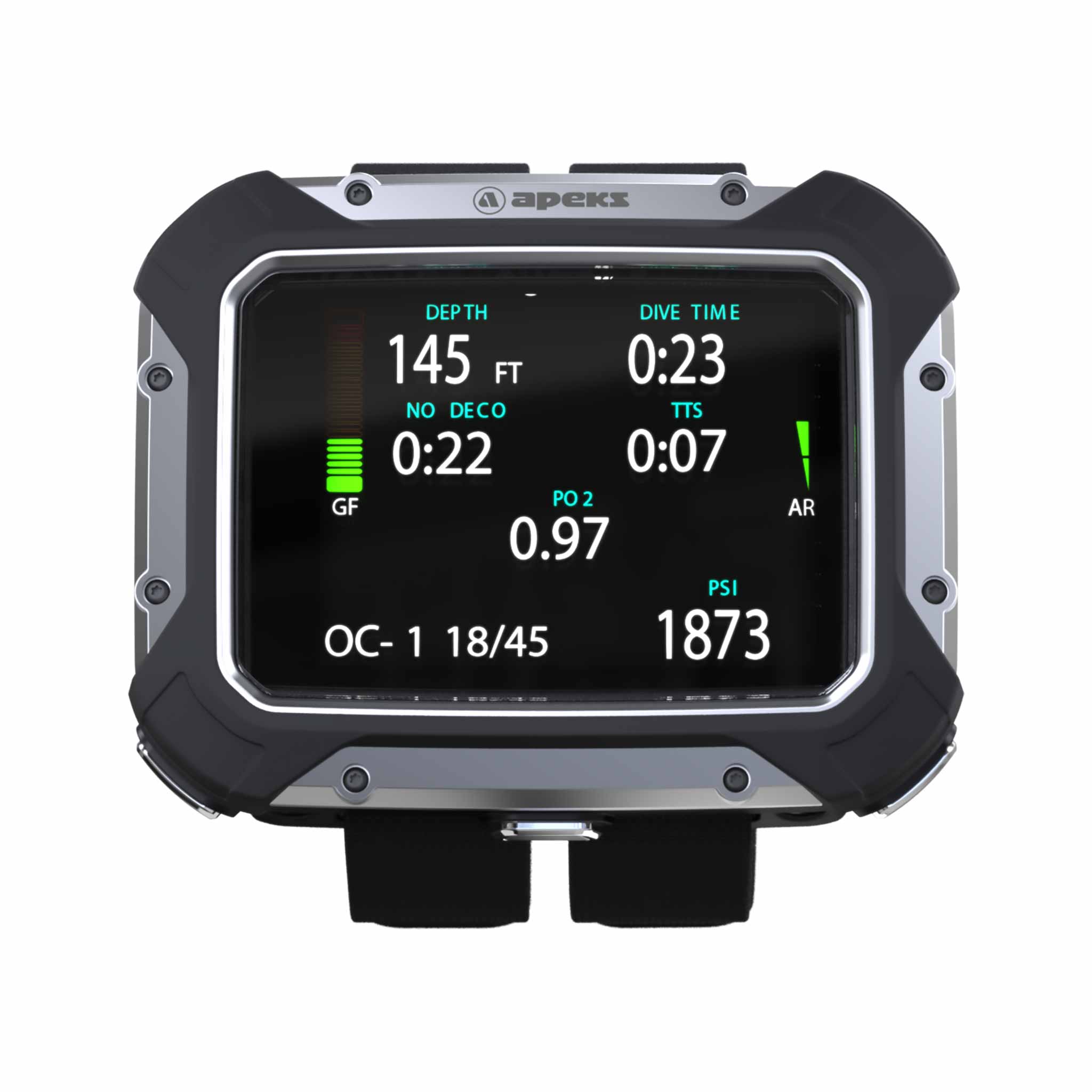

Apeks DSX technical dive computer with gas-analysis module
The DSX supports open-circuit, closed-circuit and sidemount configurations. A colour screen, digital compass and configurable alarms combine with wireless cylinder-pressure monitoring.
- Supports up to six compatible transmitters and six gases.
- Surface GPS for waypoint functions.
- Ambient-light sensor.
- Audible and vibration alerts.
- Induction and cable charging.
- Bluetooth connectivity.
- Titanium outer bezel.

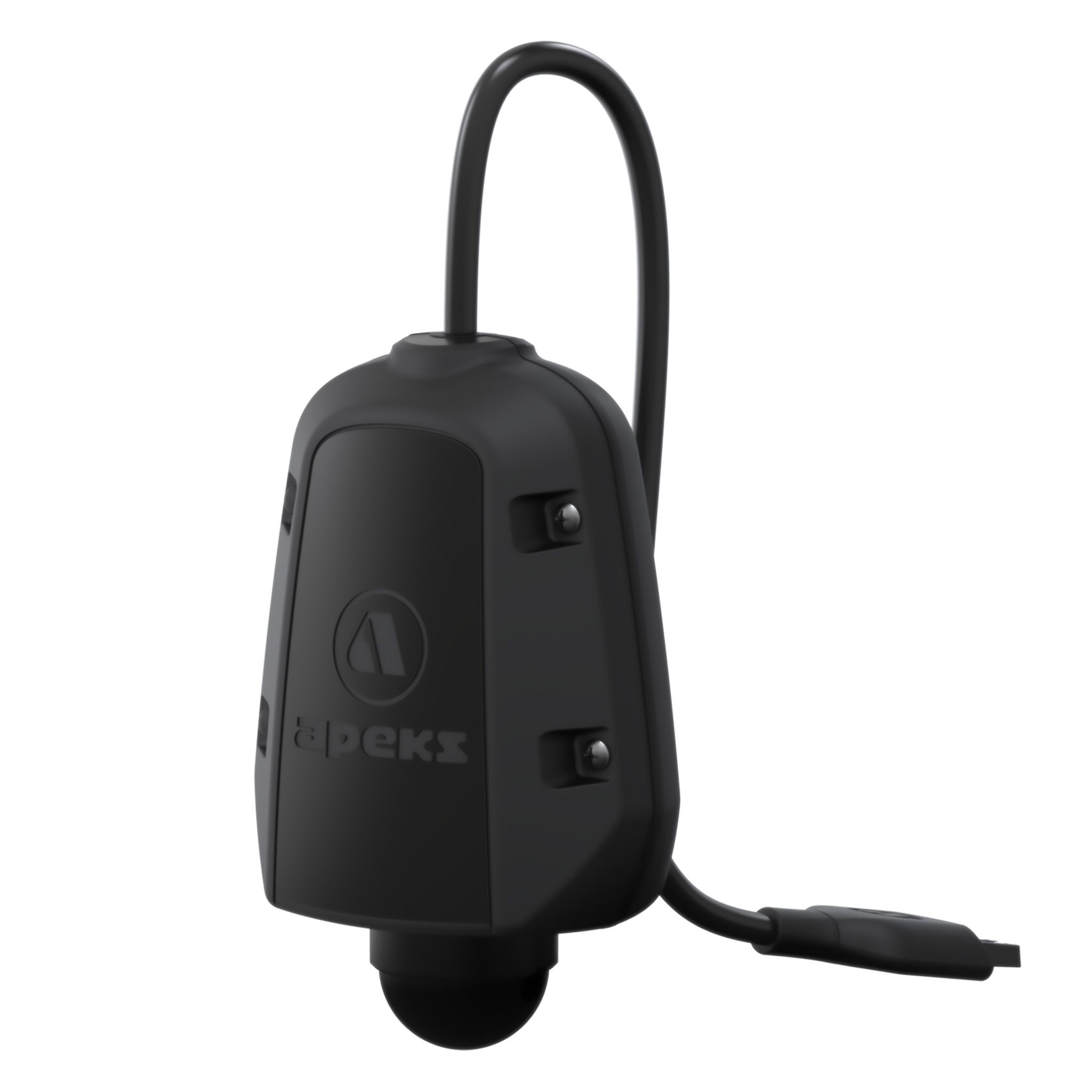

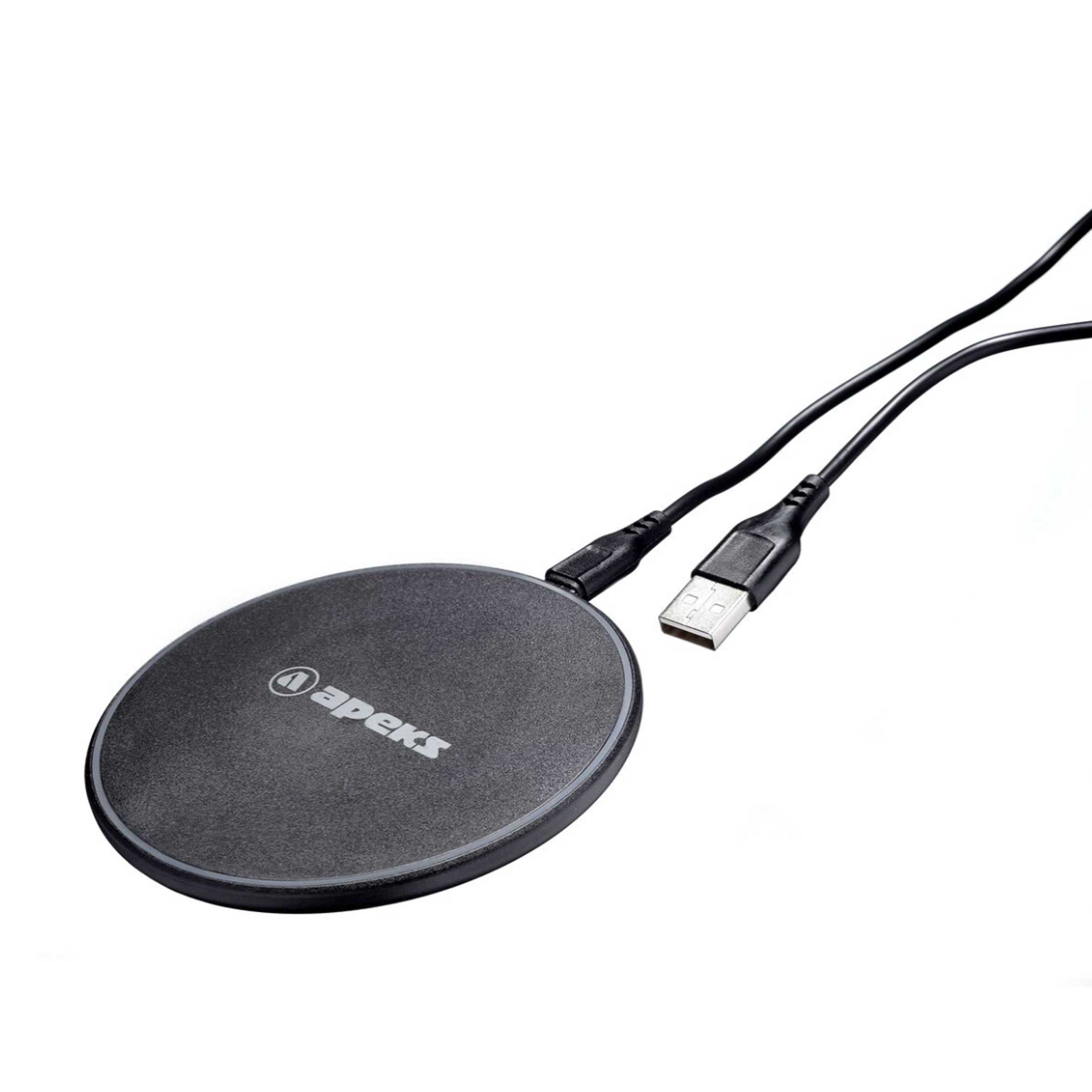

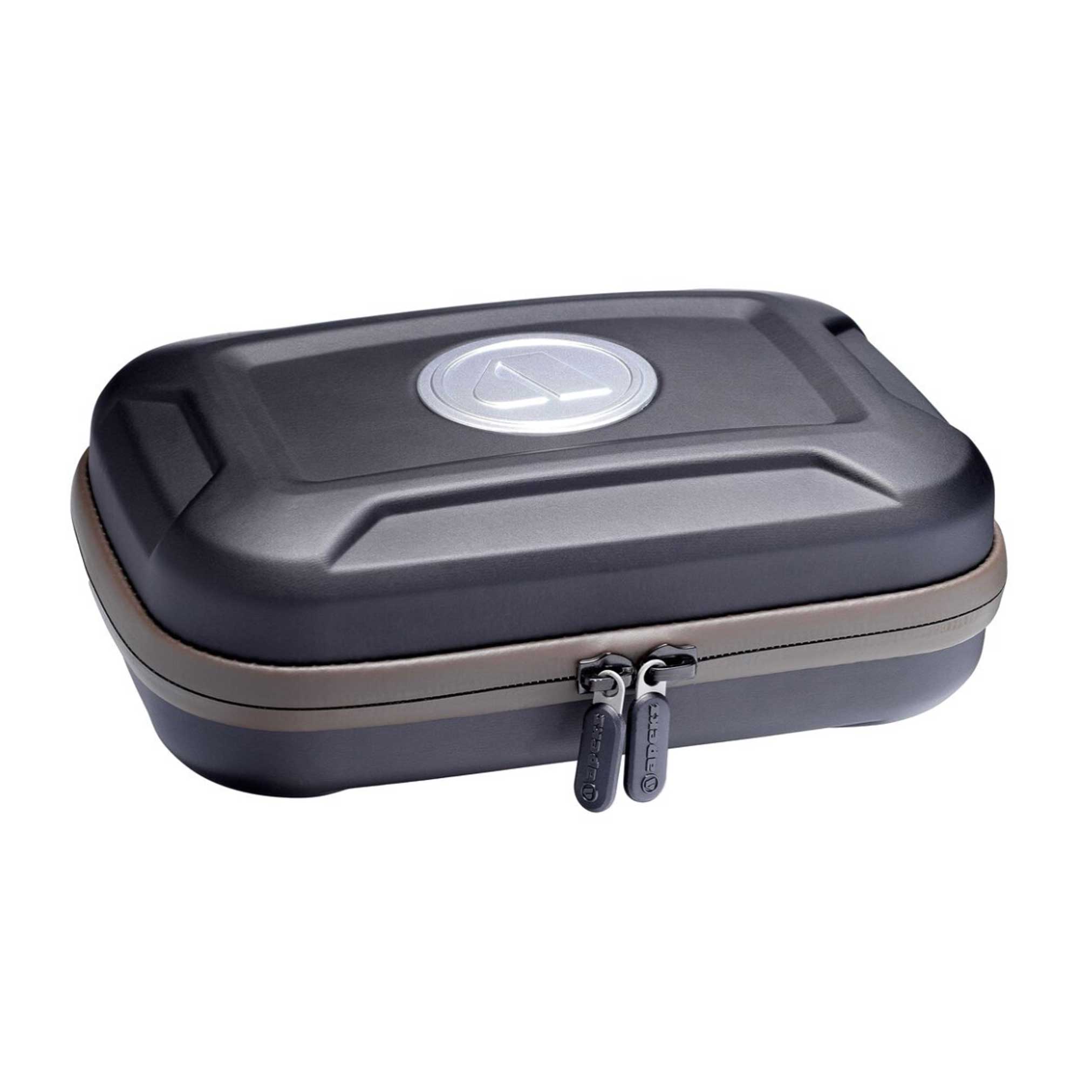

The kit includes the computer, gas-analysis module, induction mat, charging cable, bungee and elastic strap options, quick-start guide and protective case. The oxygen sensor cell is not included: select the exact compatible cell specified for the supplied analyser module. Transmitters are separate.
More About This Model
The new Apeks DSX technical dive computer is the latest in wearable technology for the serious technical diver or the diver just looking for the finest instrument on the market to take them to the next level.
Robust as only Apeks knows how, and fully loaded with cutting edge features, including sidemount and CCR mode, induction or cable charging and management of up to 6 gasses. The DSX is primed and ready to take you on your next adventure.
The ambient light sensor automatically adjusts the screen brightness to conserve battery life.
Integrated analysation software and module allow you to set gasses directly into the unit.
Vibration alarms are a discrete reminder to switch sidemount tanks or gasses.
Fast connectivityto the diverlog app and wireless updates.
Titanium outer bezel to save weight and ensure durability.
2 strap options supplied double elastic straps with buckle release and bungee attachment system.
Download dive data directly from the Bluetooth-enabled Apeks DSX dive computer, upload your desired settings direct from a mobile device to the DSX, and update the firmware to the computer using Bluetooth Smart technology.
Stay connected with the Diverlog+ app! Share your dive info, photos, and video links directly to your social media channels and make all your friends jealous of your epic dives.
The electronic dive log signature function allows buddies and instructors to electronically sign your dive log.
Synchronise your data between Diverlog Desktop, Diverlog+ app, and the DiveCloud online dive data backup system, so you can access your dive records anywhere.
How the Features Help
- Reading the display: Colour presentation separates key data such as depth, dive time and gas information. Set brightness and the available screen layout before entering the water so the information you use is easy to find.
- Navigation: A digital compass brings heading information to the same instrument as your dive data. Calibrate it as instructed and practise the available bearing and reciprocal-heading functions on the surface.
- Cylinder-pressure information: With the specified compatible transmitter, the computer shows cylinder-pressure data at your wrist. Pair each transmitter to its correct gas and check the surface reading; gas-time estimates support your existing gas plan.
- Keeping your dive record: The supported connection transfers dive logs for post-dive review and, where supported, software updates. Optional external interfaces remain separate accessories unless included in this package.
- Traditional cable charge system for faster charging from the mains or portable power source when in remote locations.
- 316 stainless-steel buttons
- rubber impact protection
- flip-screen mode
- CCR mode
Choosing and Setting Up This Model
Compare the modes, gas capability, display and mounting arrangement with the diving you are trained to do. Check exactly what this listing includes, particularly transmitters, interfaces and charging accessories. Configure the computer using its own manual and confirm gases, alerts, units and battery status before diving. A depth rating describes an instrument limit and does not establish a suitable dive depth.
Gear Care and Maintenance
After every dive, rinse gently in fresh water to remove salt, chlorine and grit. Let residue soften by soaking only as the model’s manual permits, and operate buttons during rinsing only where instructed. Do not direct a high-pressure hose or compressed air at sensor openings, and never probe them with a tool.
Use a soft cloth on the housing and screen. Use only the cleaning product and method approved in this model’s manual; avoid solvents, abrasives, bleach and strong detergents. Let the instrument and strap air dry fully in the shade before packing or charging.
Inspect the strap, attachment points, display and seals before use. Store in a cool, dry place away from direct sunlight, heaters and hot cars, with the screen protected from loose equipment. Follow the manufacturer’s battery-storage and servicing instructions.
Technical Specs
| Brand | Apeks Dive Gear |
|---|---|
| Main model / configuration | Apeks DSX Dive Computer With O2 Analyser |
| Product type | Dive computer |
| Dive modes | OC (including Sport); CC; Sidemount; Gauge |
| Depth rating | 130 m (maximum functional depth) |
| Nitrox / oxygen compatibility | Yes |
| Gas capacity | 6 OC / 6 CC |
| Battery | Integral Rechargeable Lithium |
| Computer style | Wrist |
| Colour family | Black, Silver |
| Decompression / dive algorithm | Bühlmann ZHL-16C with Gradient Factors and Sport settings |
| Altitude adjustment | Operational to 4,270 m; automatic compensation begins at 916 m |
| Alarms | Audible and vibration |
| Deep stop | No |
| Bluetooth | Yes, 5.0 |
| Rechargeable | Yes |
| Dive log capacity | 99 most recent dives; the oldest entry is replaced when full |
| Lens / screen glass | Polycarbonate with pre-installed screen protector |
| Digital compass | 3D Digital Compass |
| Display technology | Colour TFT LCD |
| Air integration | Yes |
| Transmitter capacity | 6 |
| Display size | 2.4 in |
| Charging method | Inductive and cable charging |
| GPS / surface positioning | Surface positioning |
| Bezel material | Titanium |
| User-replaceable battery | Factory replacement only; not user-serviceable |
| Trimix support | Yes |
| Connectivity | Bluetooth connectivity. |
| Oxygen analyser | Included analyser; R22 oxygen cell not supplied |
Additional specifications
| Bluetooth | 5.0 |
|---|---|
| Supplied with oxygen analyser (note | no oxygen cell supplied, use R22 type cell). |
| CPU | 32 Bit ST Micro |
| Backlight | Integrated w/LCD |
| Temperature Sensing | Yes |
| Transducer Type | Digital |
| TMT compatible | Yes, up to 6 |
| O2 analyzer | Yes |
| Audible Alarm | Yes |
| Vibration Alarm | Yes |
| Ambient Light Sensor | Yes |
| CCR Auto Setpoint Switch | User selection |
| Ambient Pressure Display | Yes |
| Flip Screen | Yes |
| Safety Stop | Yes |
| History Mode | Yes |
| Plan Mode | Yes |
| Slate Function | Yes |
| Bar Graphs | N2, GF, ASC |
| Operating temperature | In water: -2.2 to 35 °C; out of water: -6.6 to 60 °C |
| Power | Induction and cable charging. |
| Pressure monitoring | Supports up to six compatible transmitters and six gases. |
| Construction | Titanium outer bezel. |
Based on Apeks Dive Gear product information.
Official manufacturer instructions for this product.
Apeks DSX and Transmitter User Manual
Read the manual before use. For firmware updates, follow the manufacturer support link. Our team can help during business hours.
